V2025.09 VXDIAG Benz C6 Mercedes Benz Xentry diagnosis VCI Benz Diagnostic Tool with DOIP&AUDIO Function

V2025.09 VXDIAG Benz C6 Mercedes Benz Xentry diagnosis VCI Benz Diagnostic Tool with DOIP&AUDIO Function

Original VXDIAG For XENTRY Diagnosis VCI VXDIAG For XENTRY Diagnosis DoIP Pass Through Interface
VXDIAG For XENTRY Diagnosis VCI is the latest interface for For Mercedes & SMART vehicles can replace Star C4/C5. VXDIAG For XENTRY Diagnosis VCI acts as a Pass-through Interface, also called Star C6, For Benz C6 multiplexer to provide complete communication between a vehicle and the VXDIAG For XENTRY software loaded on a PC.

Notice:
If you choose option 1:VXDIAG Benz C6 With latest software（SSD）.
Please install the SSD on laptop above 4GB Memory and I5 CPU, and use it on one laptop only. If change laptop, software may get broken and need to ship HDD back to us to copy software again.
2.You also can watch more videos to get more technical support from official website: http://www.vxdiag.net
3.This VXDIAG can/'t support All Key Lost,needs one key at least.

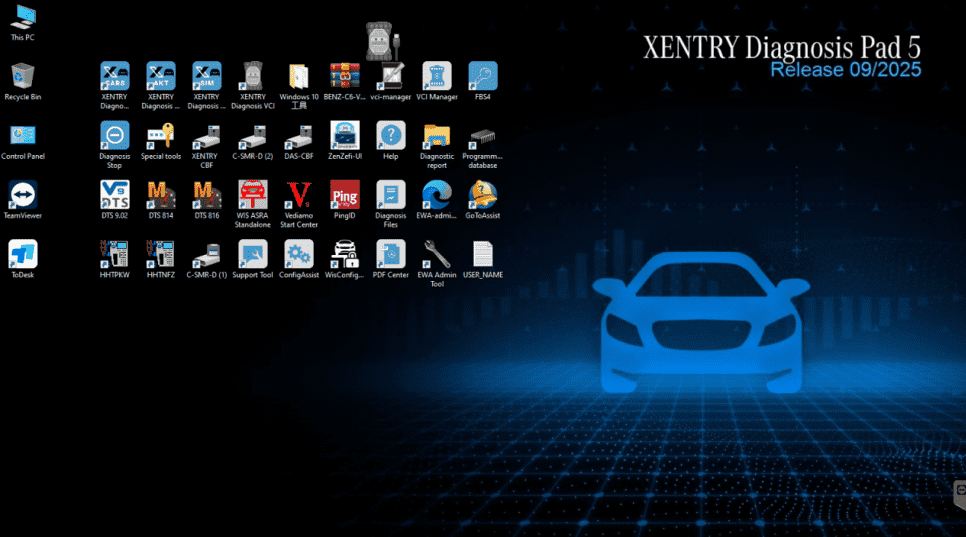

2025.09 XENTRY Software Show:

Software list:
1. DAS 2025.09 : the automatically Diagnosis Assistance System. Support 257 and so on new cars to register free to diagnosis
2. Xentry 2025.09: New software released by Benz Company after 04/2009 by diagnosis new cars.
3. WIS net 2021.10: Workshop Information System
Supply the whole view of the wiring diagram in a car, component location diagram and maintenance method. What you do is to enter the chassis number, and then you will get the manufacture data, engine configuration and the car model -all in detail.
4. EPC.net 2018.11: Electronic Parts Catalog
5. ST Finder: Part Location Finder options: 2016 and 2020 and 2023
6. STARUTILITIES: the movement management system and self-test
7. SD MEDIA 2014
8. PL76 2022.01
9. Engineer version Vediamo updated to V5.01.01 ，Engineer version DTS updated to V9.02，Upgrade to the latest version of 2022 data

VXDIAG MB SD Connect C6 XENTRY Diagnosis VCI Overview:
Compatible Software: XENTRY/Das Software
Support Vehicle: Mercede For Benz & Smart vehicles
DoIP: Support DoIP
Functions: Star Diagnostic & programming (SCN Coding)

VXDIAG MB SD Connect C6 XENTRY Diagnosis VCI Features:
1.VXDIAG For XENTRY Diagnosis VCI can be used for all model series of For Mercedes For Benz vehicles
2.VXDIAG For XENTRY Diagnosis VCI support DoIP, cover more functions during SCN Coding than SD C4/C5
3.VXDIAG For XENTRY Diagnosis VCI functions including diagnosing, programming, simulation studying, repair information, automotive maintenance, technical service bulletin and so on
4.VXDIAG For XENTRY Diagnosis VCI Diagnosis updates no longer necessary – firmware updates required on rare occasions
5.VXDIAG For XENTRY Diagnosis VCI does not need a power supply unit for external power supply
6.VXDIAG For XENTRY Diagnosis VCI Handy multiplexer with a small, sturdy construction (no PC core, battery, fan, or display)
7.Engines (All Gasoline & Diesel Systems)
8.Transmissions and Electronic Selector Modules
9.Airmatic and Active Body Control Suspension Systems
10.Traction Systems: ESP / ASR / ETS / ABS / BAS / SBC braking systems
11.Supplementary Restraint Systems (SRS) / Airbag, All body modules OCP / UCP / LCP / SCM / SKF / KFB / RCM / DCM’s
12.Drive Authorisation System
13.Sam (Signal Acquisition) Modules
14.Electronic Ignition System (EIS)
15.Pneumatic System Equipment and ATA functions
16.Air Conditioning / climate control Systems
17.Instrument Cluster
18.Tyre Pressure Control
19.Parktronic System
20.Keyless Go
21.D2b Command & Audio Gateway (D2B and MOST networks)
22.TV Tuner
23.Headlamp Range Adjustment
24.Seat Electronics
25.Rvc, RST & Vario Roof modules
26.Automatic Clutch System ACS
27.M-Class Body Modules (AAM / EAM / DAS / SEM / VG Transfer Case)
28.Assyst & ASSYST + systems

XENTRY Diagnosis VCI Summary:

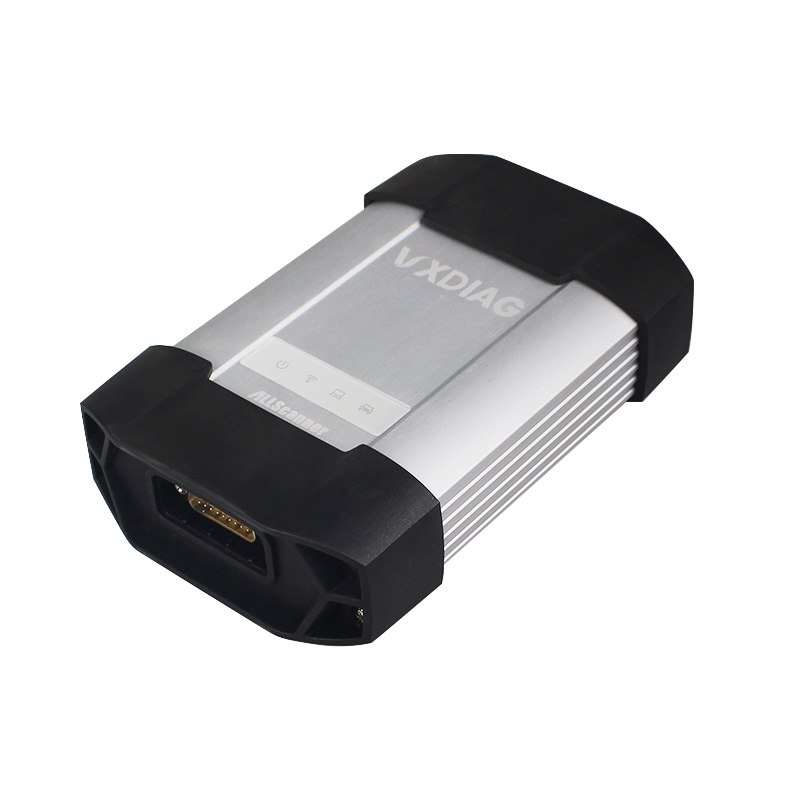

The new VXDIAG For XENTRY Diagnosis VCI (Vehicle Communication Interface) multiplexer serves as the interface to the vehicle when performing diagnosis and repairs, and programming electric and electronic on-board vehicle systems.

The VXDIAG For XENTRY Diagnosis VCI does not have its own PC core, battery, fan, or display. It is operated using the VXDIAG For XENTRY Diagnosis Pad via WLAN or a USB cable connection.

Specification:
Item State
RAM 32bit180MHz ARM
FLASH 1MByte FALSH
Diagnostic Port 24PIN, self-determination design
LED 4 LED indicator light,indicate power and status.
Power DC 9V-36V
Consumption 3W
Working Temperature -20°C~70 °C
Storage Temperature -40°C~85 °C
Warranty: One Year

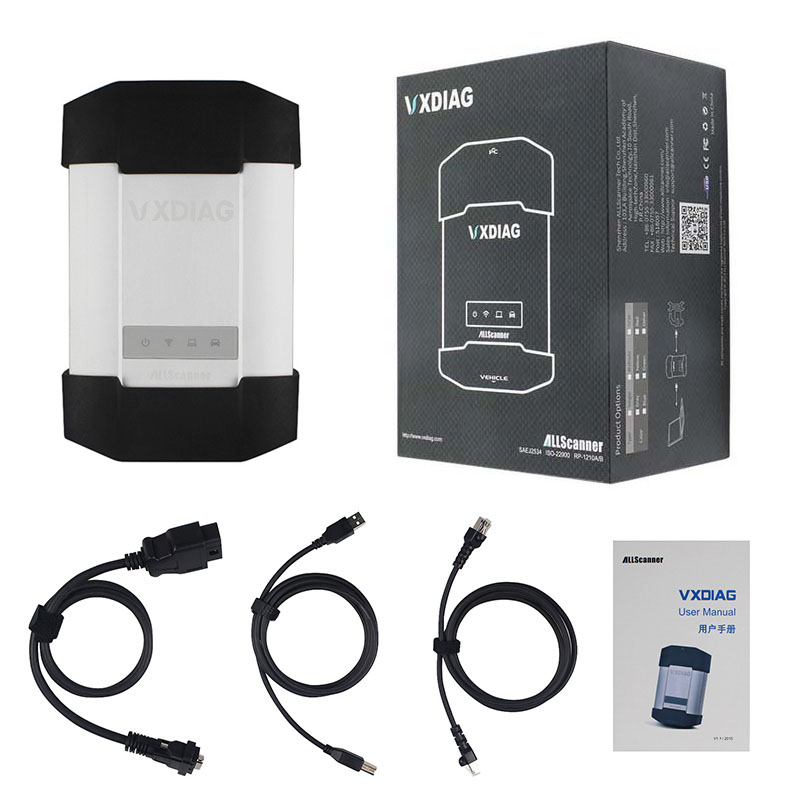

Package List 1:
1pc x VXDIAG VCX-PLUS
1pc x OBDII Cable
1pc x USB Cable
1pc x SSD（latest software is installed）

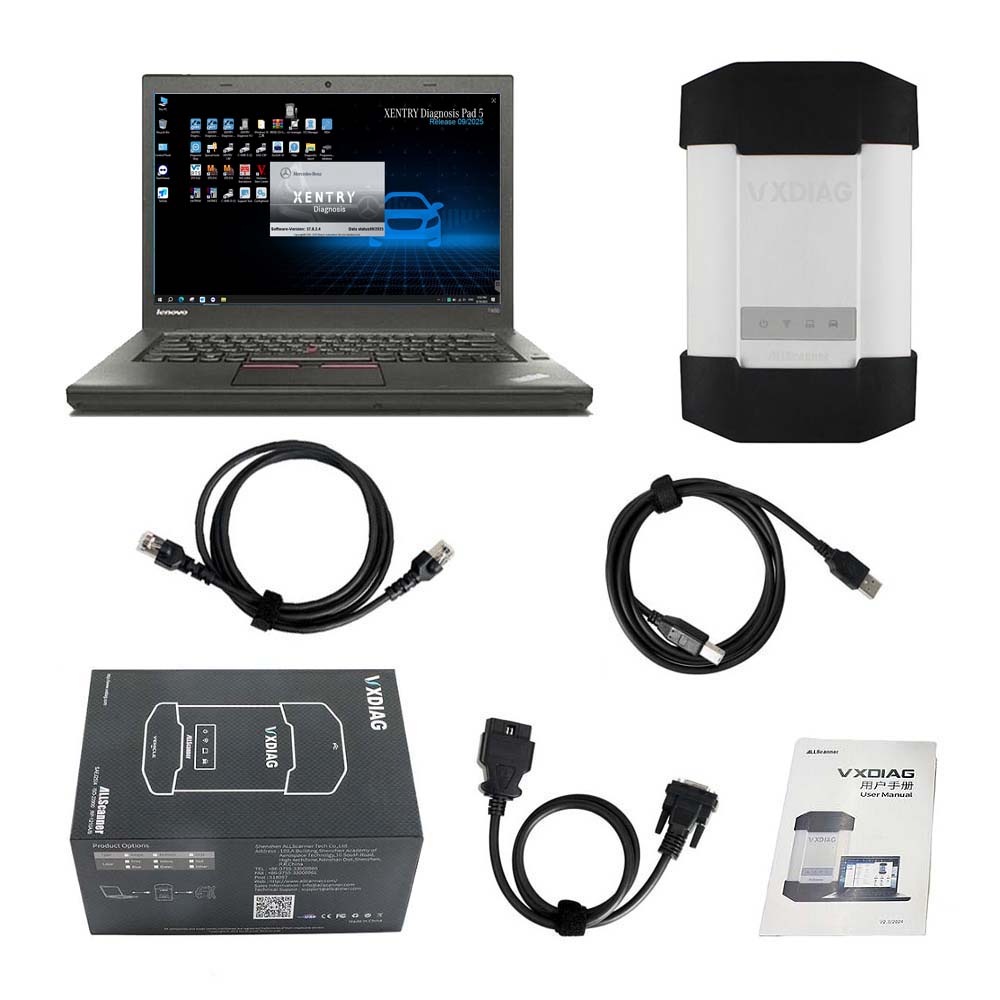

Package List 2：
1pc x VXDIAG VCX-PLUS
1pc x OBDII Cable
1pc x USB Cable
1pc x The Second Hand Lenovo T450 Laptop (latest software is installed)

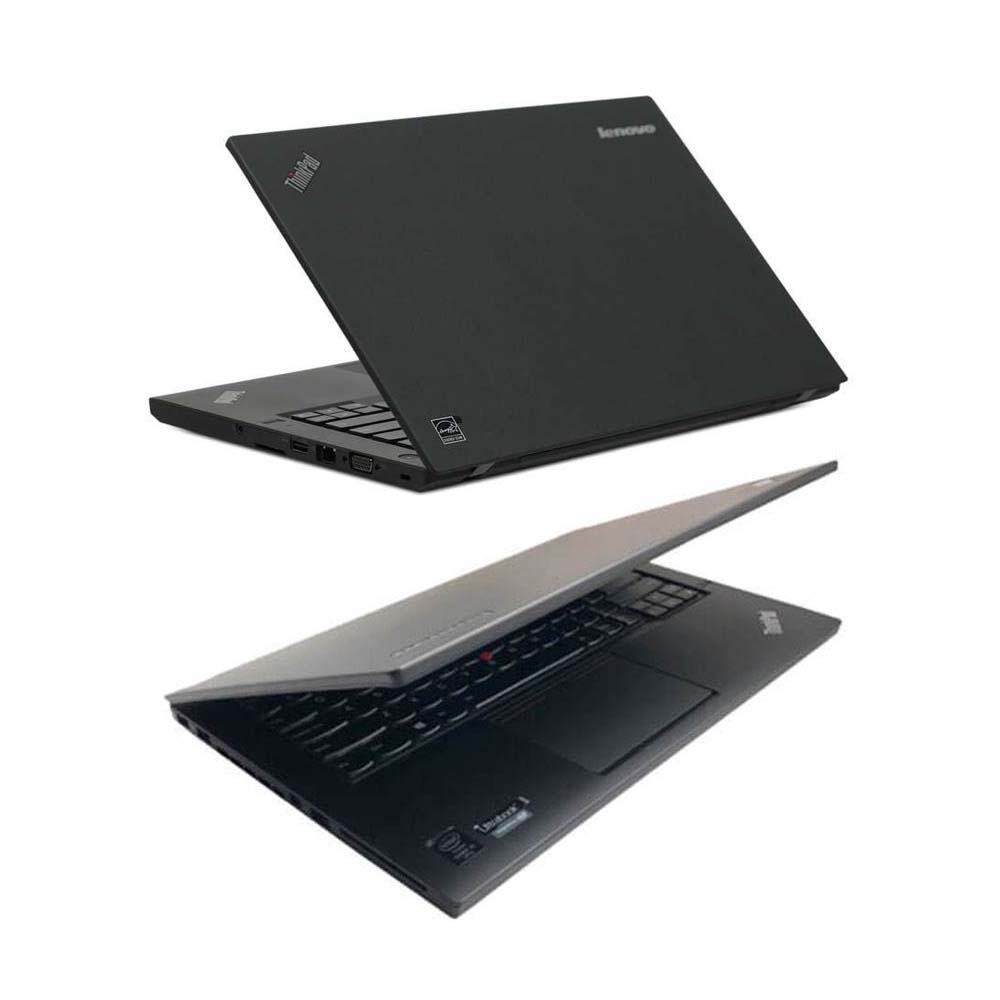

Second Hand Laptop Lenovo T450 Specification:
Brand: Lenovo
Condition: Used
Type:Laptop/Notebook
Screen Size:12.5
Processor Type:Intel (R) Core(TM) I5-5200U CPU
Memory: 8GB

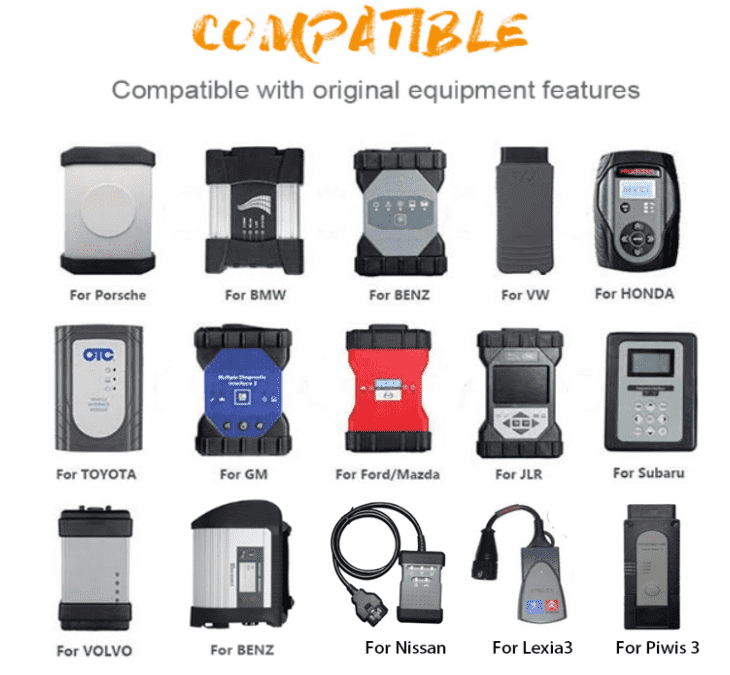

VXDiag MB SD Connect C6 support add more original software in feature, you only need buy authorization from us. Already released original software authorization has：GM,Ford,Mazda,Toyota,Honda,LandRover,Jaguar,Subaru,Volvo,VW,and Porsche ect.


If you need above softwares, please contact us.
