XTOOL D9 MAX Professional Diagnostic Tools J2534 ECU Programming Automotive Scanner
The XTOOL D9 MAX is an advanced, upgraded version of diagnostic tools like the D9S and D9S PRO. It is engineered as a comprehensive professional-grade solution, integrating powerful ECU programming with extensive system diagnostics and service functions.
Highlights:
1. Upgrade of D9S PRO
2. Full-System Diagnostics & Active Tests: Diagnose 99% of vehicles with deep OE-level access and 4000+ real-time control tests.
3. J2534 Programming + Online Coding: Program ECUs, adapt modules, and activate OEM features for BMW, Benz, Audi, and more.
4. 45+ Maintenance Functions: From injector coding to transmission adaptive value reset, tackle essential services with fast speed.
5. Smart Topology Mapping: Visual fault detection across entire vehicle networks for faster troubleshooting.
6. Advanced Hardware Configuration with 9.7" HD touchscreen, 4GB+128GB memory, and fast 1.8GHz CPU deliver smooth diagnostics. 100FT wireless range and 6400mAh 7.3V fast charging battery enable full-day work across busy shops.
7. Pre/Post Scans and Diagnostic Report V2.0
8. Bi-Directional Control and Key Programming
9. Support for FCA AutoAuth DoIP and CAN FD Protocols
10. 3 Years Updates & Pro Support: Stay current with 3 years of free updates, responsive support.
Core Capabilities & Features:
1. ECU J2534 Programming
The D9 MAX provides optimal ECU programming solutions for BMW, Mercedes-Benz, VW, Audi, Skoda, Ford, Mazda, and Lincoln. It performs meta-programming to replace existing software/firmware in Electronic Control Units (ECUs), program new ECUs, reflash virgin ECU modules, and resolve driving performance and software-controlled emission issues. This function supports both online and offline programming.
2. Programmable Module Installation (PMI)
When replacing or initializing new/used modules on Ford, Lincoln, and Mazda vehicles, the D9 MAX allows you to copy data from the original module and install it onto the new one to complete the module replacement process seamlessly.
3. Advanced ECU Coding & ECU Configuration
This tool executes ECU coding to flash hidden functions, customize settings, or disable annoying features (e.g., disable seatbelt buzzer, rear seat buzz). It also reprograms adaptive data for specific components after service or replacement. Supported brands include VW, Audi, Skoda, Mercedes, BMW, Mitsubishi, Toyota, Lexus, Scion, Mazda, Ford, and Lincoln.
4. FCA AutoAuth & CAN FD/DoIP Protocol Support
FCA AutoAuth: Enhances diagnostics for FCA vehicles (Chrysler, Jeep, Dodge 2018+), removing bridge restrictions.
Note: FCA support is currently only available in North America. For other regions, consider purchasing the XTOOL 12+8.2 cable adapter. The buyer is responsible for registering an FCA account; all associated fees are unrelated to the seller.*
Modern Protocol Support: Accesses the new CAN FD communication protocol (e.g., General Motors MY2020+) and DoIP communication protocol (e.g., BMW E/F/G chassis, Jaguar, and Land Rover brands).
5. Diagnostic Reporting & Topology Mapping
Pre-Scan & Post-Scan: Allows for easy visualization of the vehicle's status before and after repairs.
Diagnostic Report V2.0: Upgraded reporting feature for advanced vehicle analysis.

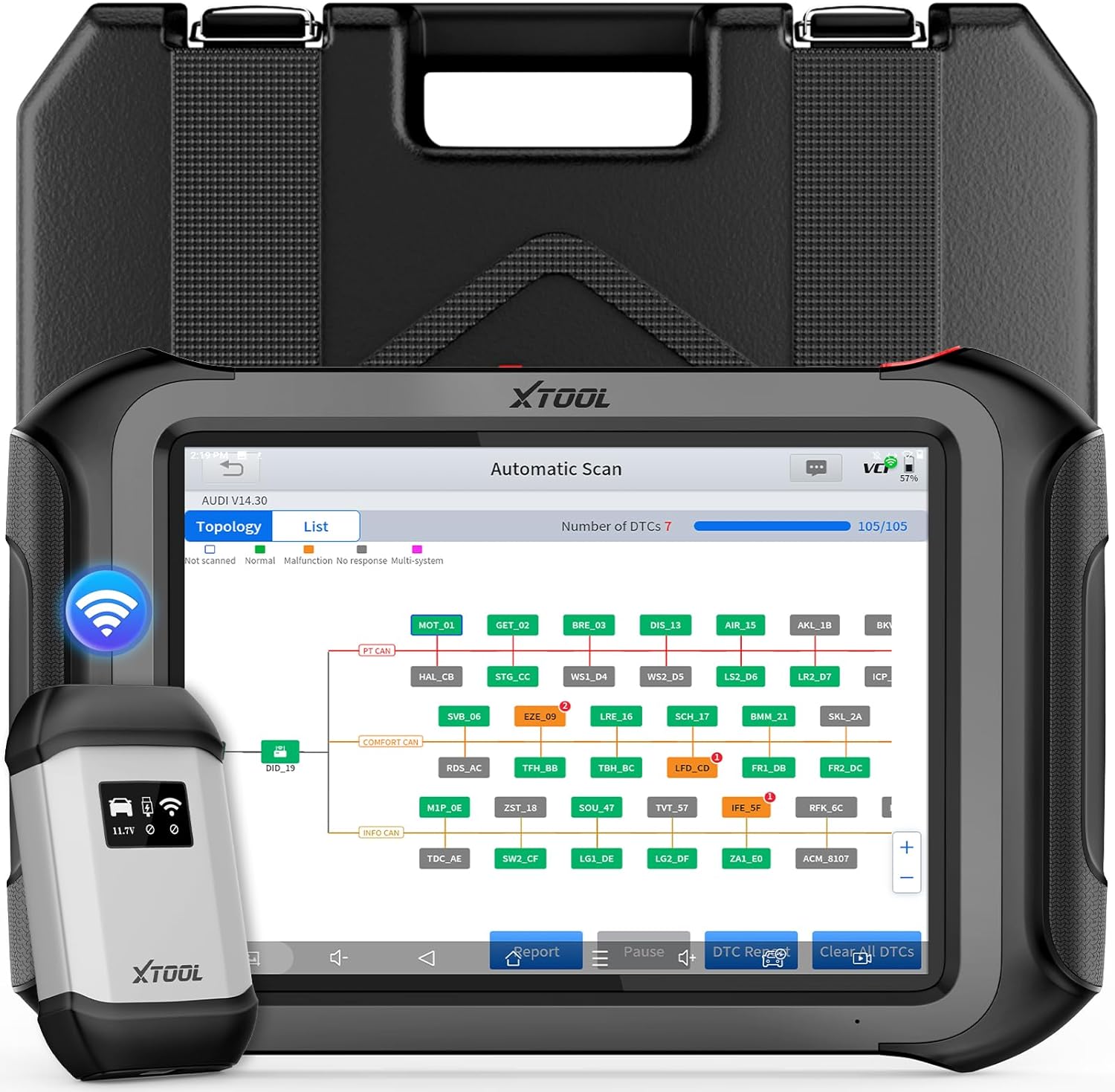

Topology Module Mapping: Provides a color-coded, clear, and intuitive map of the vehicle's communication system, enabling fast access to diagnose any module within systems like engine, transmission, chassis, safety, body control, and infotainment.
6. Bidirectional Control
Enables full active testing of vehicle components. Functions include testing EVAP solenoids, injector slow motion, relearns, adaptations, cycling components (e.g., ABS pump, A/C clutch, windows), and performing resets (e.g., brake pads, throttle).
7. Extensive Service Functions
Designed for mechanics, workshops, and garages, the D9 MAX offers over 42 service and maintenance functions. These include oil reset, EPB service, SAS reset, DPF regeneration, control unit reset, rain/light sensor calibration, battery relearn, A/C reset, and TGV relearn.
Note: Service function availability may vary by vehicle.
8. Guided Functions
VAG Guided Functions: Provides step-by-step instructions to perform complex operations like special functions and ECU coding on VW, Audi, and Skoda vehicles.
BMW Guided Functions: Offers diagnostic steps based on fault codes, including module tests, functional tests, wiring schematics, and component location maps to streamline troubleshooting and repair for BMW models.
9. Superior Hardware Configuration
OS: Android 10
Display: 9.7-inch Touchscreen (1024*768 Resolution)
Processor: 1.8 GHz Quad-Core CPU
Memory & Storage: 2GB RAM, 64GB Storage
Battery: 10,000 mAh
Connectivity: WiFi & USB Type-C to Type-B Cable
10. Software Update Policy
The XTOOL D9 MAX comes with 3 years of free software updates. After 3 years, all existing functions will continue to operate normally without upgrade. Should an update be required after 3 years, users can contact us with the serial number; a fee will apply for the upgrade service.
Important Notices:
Functionality and compatibility vary by vehicle. Please contact us with the vehicle's VIN to confirm compatibility before purchase.
Features such as Topology Mapping and specific Service Functions are not universally compatible with all vehicle models.

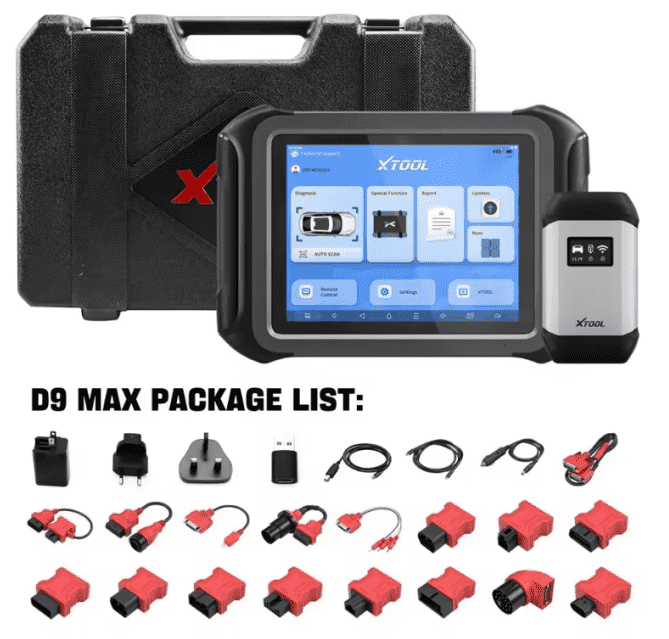

Package List
