MPPS V22 Master ECU Programmer V22 No Times Limitation ECU Chip Tuning Tool with Tricore Adapter full set
MPPS V22 Specifictions:
Latest Version: Newest MPPS V22.2.3.5
Support car: Please check the car list
Support System: WIN10, WIN7 (64bit)
Support Multi-languages: Afrikaans, Albanese, Bahasa Melayu, Czech, Cymraeg, Dansk, Deutsch, Esti, English, Espanol, Filipino, Finnish, Francais, Galego, German, Hrvatski, Indonesia, Italiano, Kiswahili, Latvian, Lietuviskai, Magyar, Malti, Nederlands, Norsk, Polska, Portuguese, Romanian, Slovenian, Slovenski, Srpski, Suomea, Svensk, Turkish
Why Choose MPPS V22:
--MPPS V22 add more car model and ecu protocols than MPPS V21/V18/V16.
--MPPS V22 add more funtions and features than MPPS V21/V18/V16.
--MPPS V22 support win7/win10, MPPS V21/V18/V16 only support win7.
--MPPS V22/V18/V16 no usage time limit , MPPS V21 has usage time limit.
Support New Functions :
Added new FRF decryption in Tricore Boot.
Added PSA ME7.4.5 K-line/CAN and Special mode.
Added Opel Vauxhall ME9.6.
Added Renault Delphi DCM 1.2 Can.
Added VAG Simos 6.2/6.3.
Corrected a problem with Delphi E87 checksum.
Added new antituning search for EDC17 ecu's.
Added (M)EDC17 Slave ecu's both TP2 and UDS.
Various corrections and fixes.
The MPPS V22 is a powerful programming tool. It offers general reading / writing operations and checksum support, however it also includes some additional features:
Excellent recovery functions. In some cases MPPS can recover ECU's which others tools can not even make communications with. On certain controllers it even works when with no program is present (a blank memory).
Selectable full / partial reading and writing when the ECU allows this function.
Selectable reading / writing speed.
Writing "changes only" function for faster programming (when supported by the ECU).
Auto detection of K-Line/CAN, and option to bypass and force preferred means of communication.
Temporary bypass of immobiliser to allow flashing on the bench on ME7 systems.
Boot mode support for ECU's with C167 and ST10 processors.
EEprom read/write functions for some ECU's are included.
MPPS V22 Master Ecu Programmer Car list:
Alfa Romeo, A-udi, Bentley, BM-W, Chevrolet, Chrysler, Citroen, Dodge, Ducati, Fiat, Ford, Generic, Holden, Honda, Hyundai, Isuzu, Iveco, Jaguar, Jeep, Kia, KTM, Lancia, Land Rover, London Taxis International, Mazda, MCC-Smart, Mercedes, MG, Mini, Mitsubishi, Nissan, Opel, Peugeot, Renault, Porsche, V-W, Volvo, Vauxhall, Seat, Saab.
MPPS V22 Full Car ECU list
Tricore Boot + OBD Unlock Module Features:
TPROT / DS check feature, for testing if TPROT is active without opening ECU
Auto detects ECU and processor type. No need to select from list, everything is automatic!
Read/Write of all memories Eeprom, Irom, Xrom (where possible)
Patch function for OBD Flashing of TPROT ECU's in boot mode (supports only VAG at the moment)
Support for unlocking of VAG Simos PCR and Simos 8 with external eeprom.
Checksum Correction supported for Bosch MEDC17 irom and eeprom.
Checksum Correction supported for Simos PCR, Simos 8 and SID208, SID209, SID305, SID807 irom
NEW!Support for Bosch Service Mode to read password on ECUs using TP12+
NEW!Special file utility for creating OBD unlock files from VAS FRF/SGO containers (flash containers are not provided!). This function will allow you to work completely from OBD on locked ECUs!

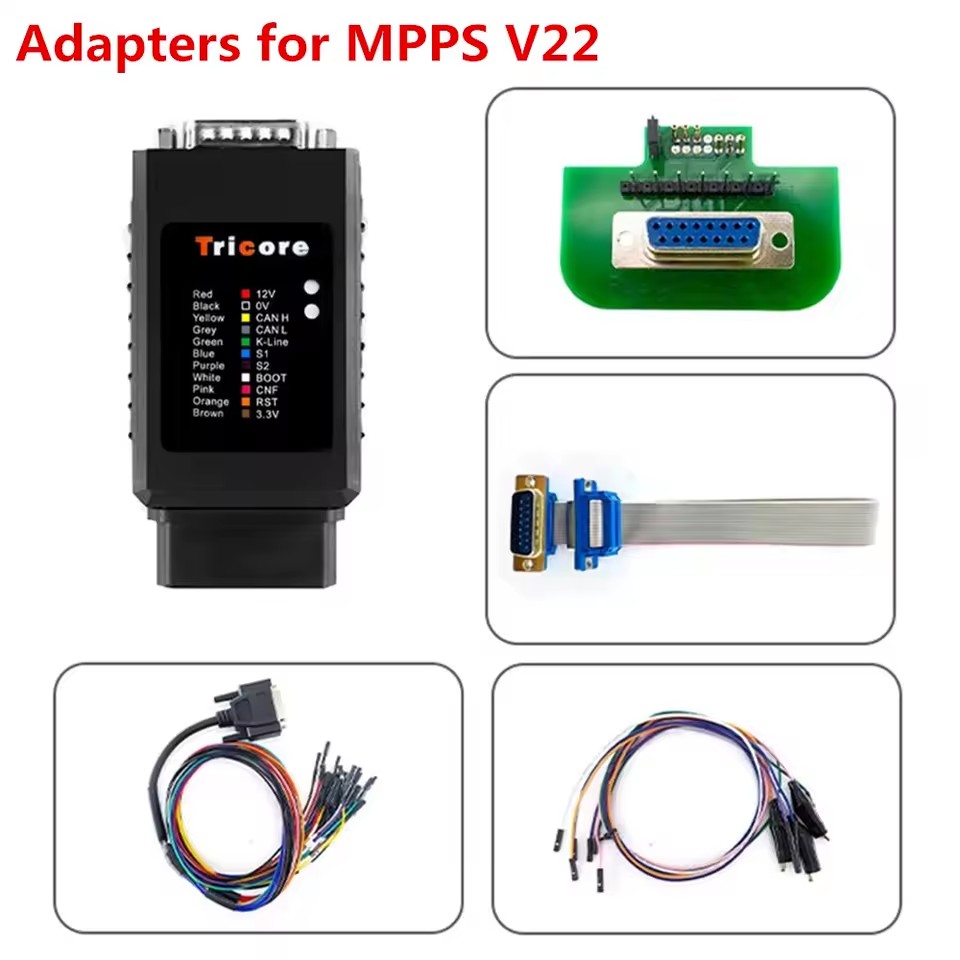

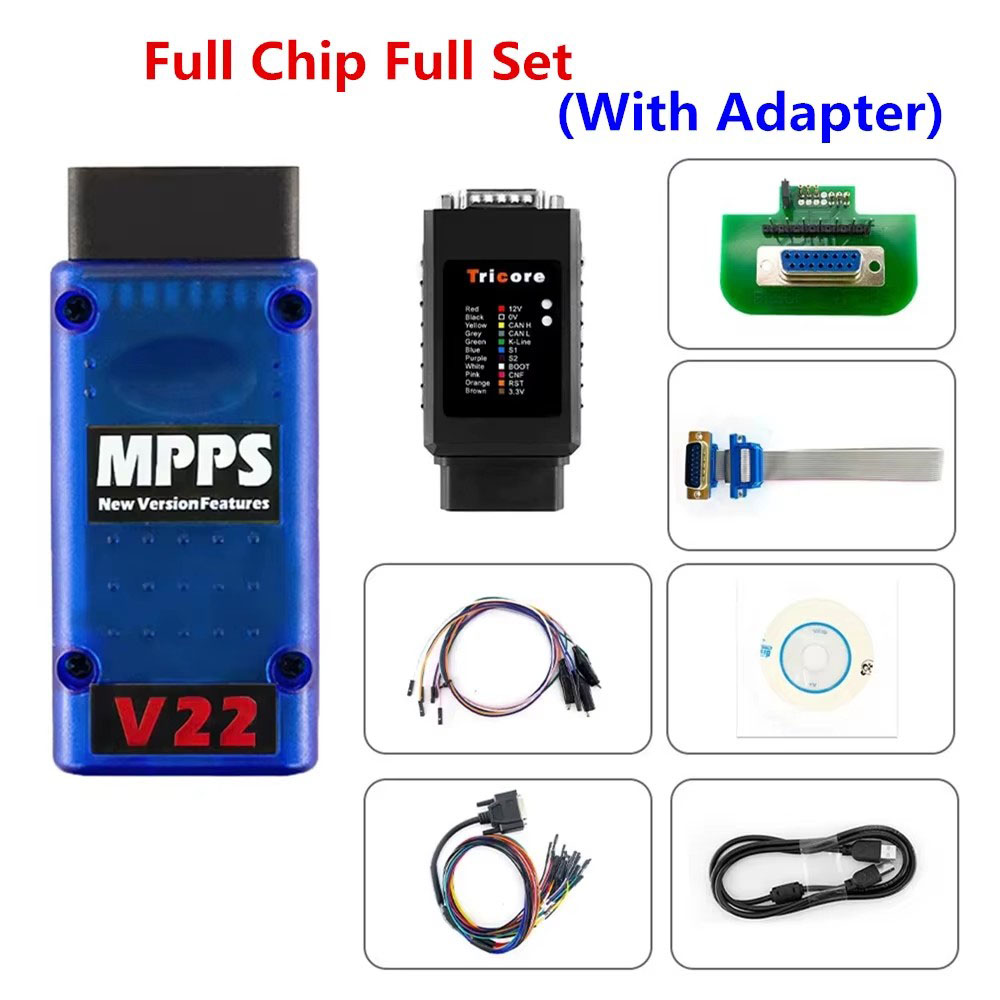

MPPS V22 Master with Tricore Adapter full set Packing list ：

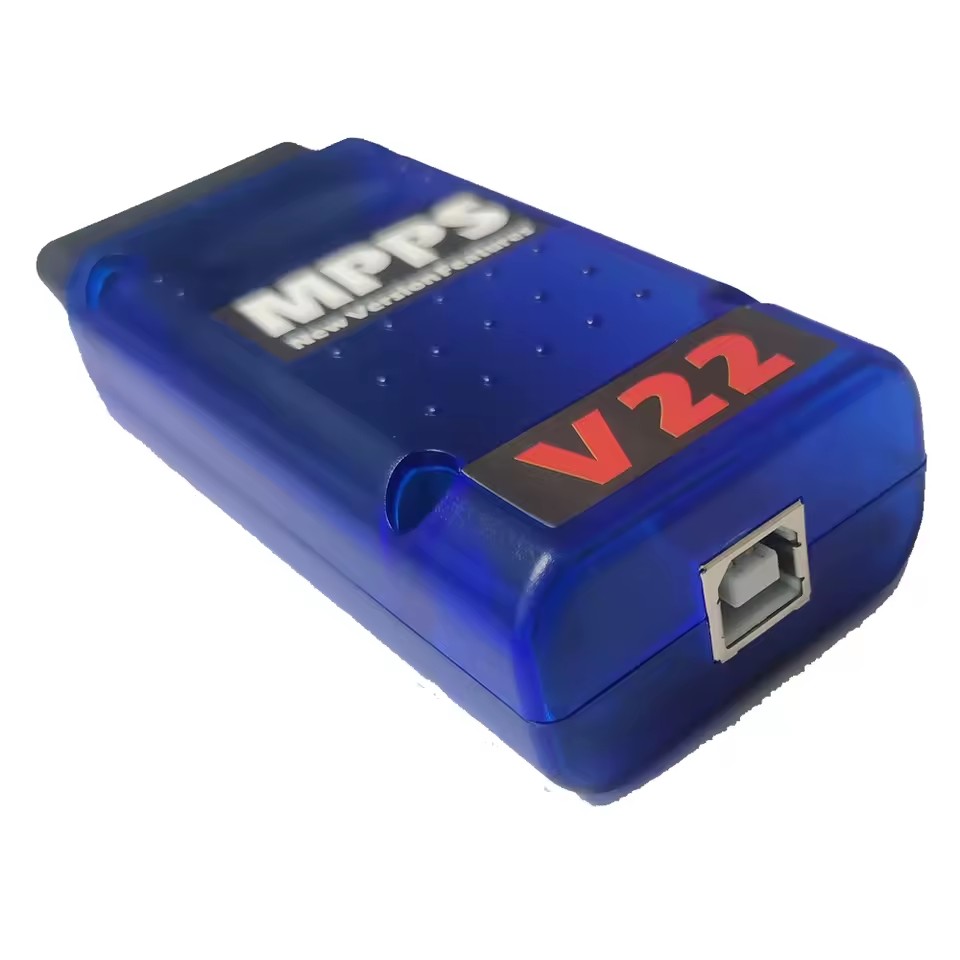

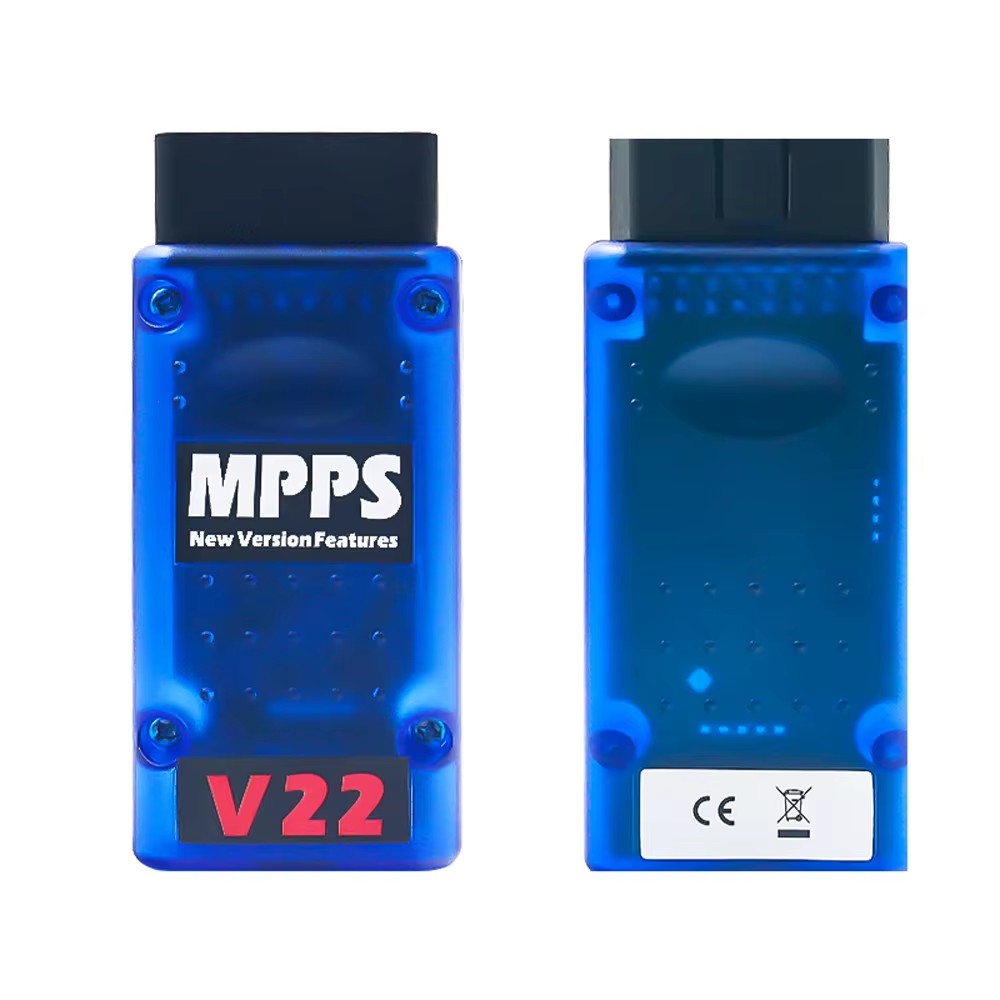

1* MPPS V22 main unit
1* USB cable
1*Tricore full kit
1*BOSCH TRICORE Adapter
1*BOSCH TRICORE Adapter 6pin cable
1*BOSCH TRICORE Adapter DB15 cable
1*Bench Pinout cable DB15
1*BOX
P
lease download the software here：
https://mega.nz/file/wS8GmYjQ#3EC3I8uoO12R20WTauO0_-B56GBcfYoH3up7c6Vtkr8
MPPS V22 FAQ:
Q: does MPPS V22 work on edc17?
A: Yes, MPPS V22 ECU chip tunning support VAG EDC17

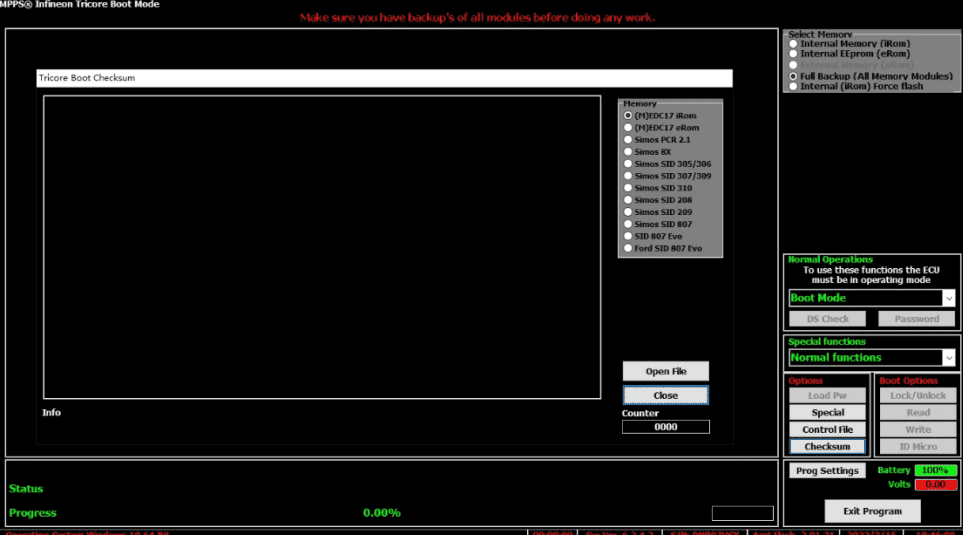

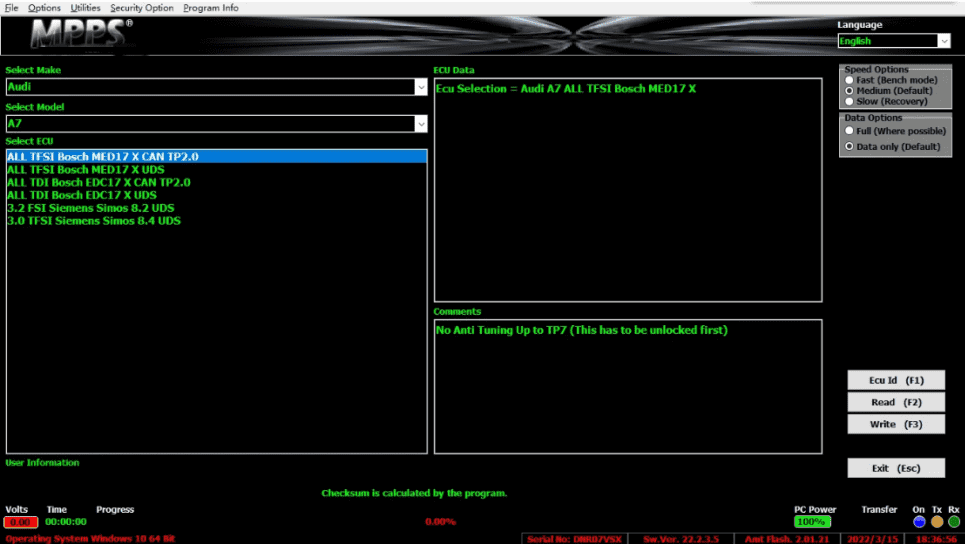

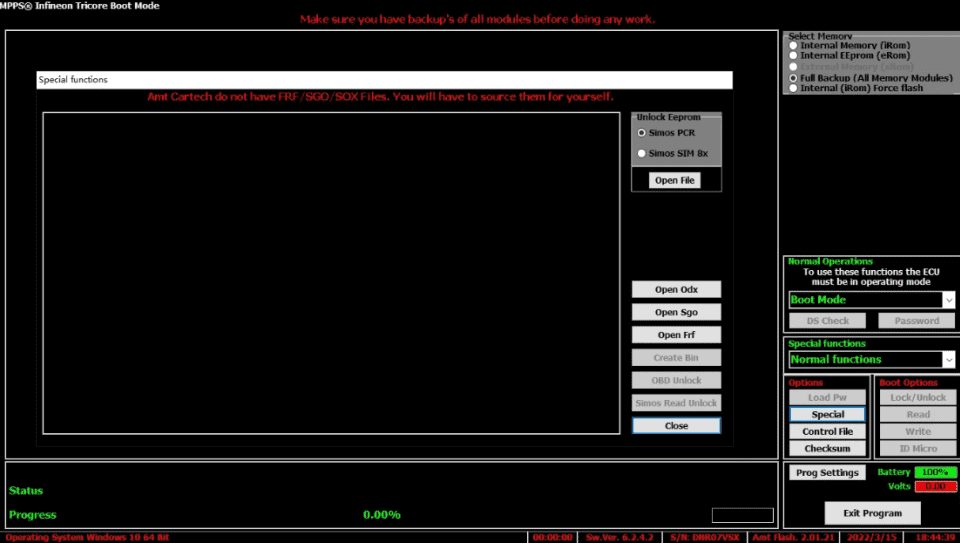

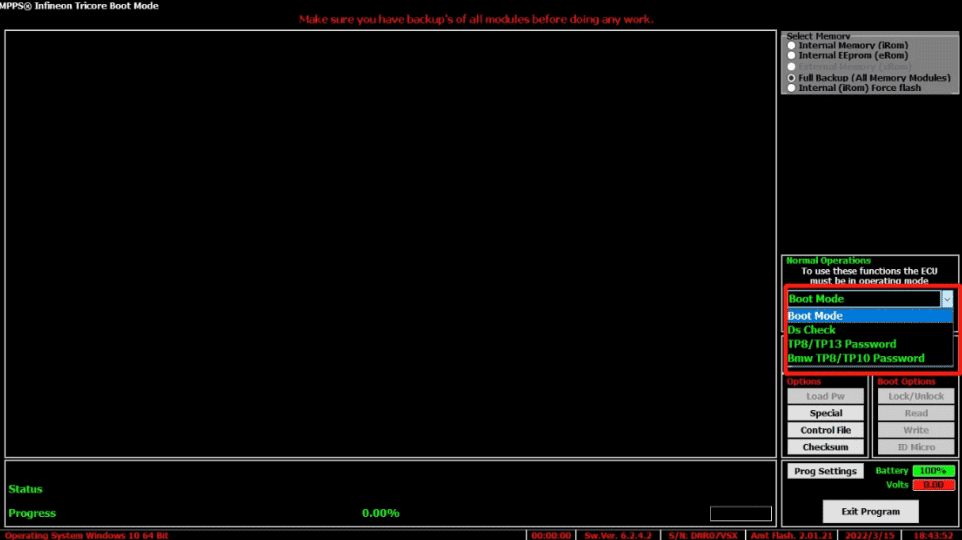

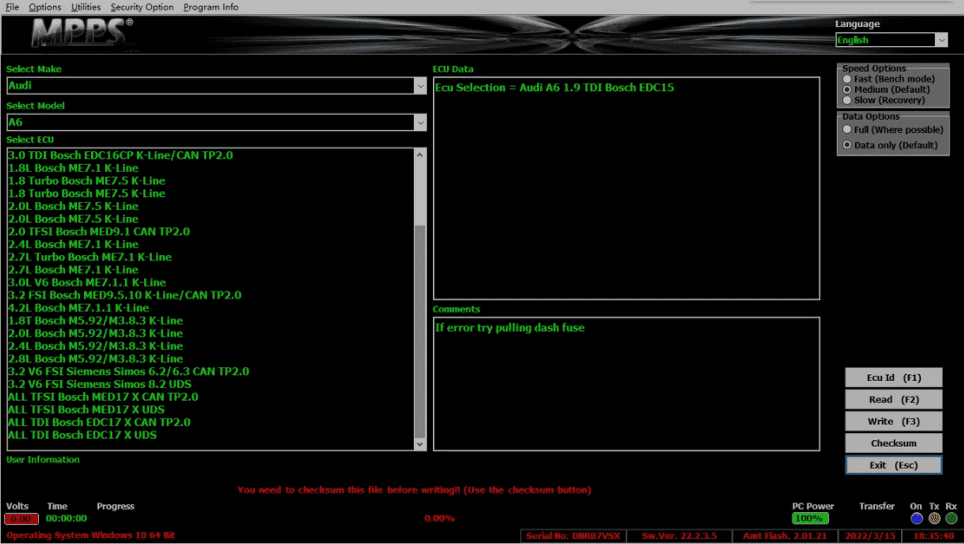

MPPS V22.2.3.5 ECU Chip Tunning Software download display:
