Navistar Engine Diagnostic Software (NED) 2025.10
Notice:
After payment, we will remotely install and activate the software for you (just install on one computer).
Data update: 2025.10
Size: 200 Mb
Region: All regions
Type: Diagnostic Software
Language: English
OS: Win 7,win 10,win 11
Installation: 1 Pc (By Teamviewer)

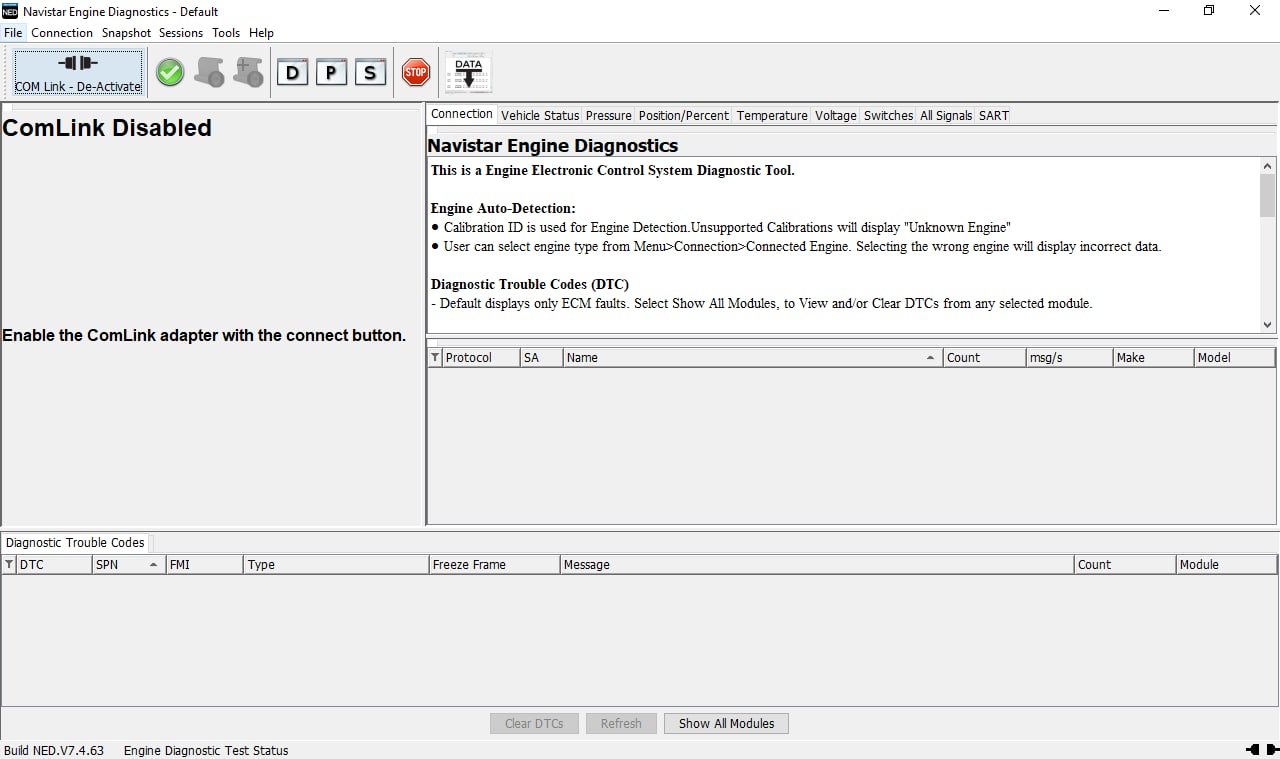

Navistar Engine Diagnostics is a diagnostic and programming service tool for Navistar Engines. A full-featured PC application, Navistar Engine Diagnostics is designed to meet the wide range of diagnostic challenges of servicing a mixed truck fleet.Coverage includes all J1939 International electronic engine systems.It allows you to monitor the control system, retrieve diagnostic trouble codes (DTC), change parameters, view and graph engine data, and run specialized service bay testing on all engine and aftertreatment systems. The application also features period updates, ensuring you the most up-to-date coverage.
Basic Features
1.Read and clear diagnostic fault codes
2.View signals and parameters
3.Print trip and vehicle reports
Advanced Features
1.Diagnostic Tests
KOEO – Key On Engine Off
KOER – Key On Engine Running
KOEO – Injector Buzz Test
KOER – Injector Contribution Test
Cylinder Cutout Test (EPA 04′ and newer)
Injector Disable Tests (EPA 04′ and newer)
2.Display and change configurable Parameters
Crank Inhibit
Fan Control
Idle Shutdown Timer
Warm-up Device
Warning and Protection System
Hydraulic Pressure Governor
PTO Control
Radiator Shutter
Vehicle Speed Limit
Vehicle Retarder
Two Speed Axle
Traction Control
Minimum System Requirements:
Microsoft Windows 10 and Windows 11
1GHz Intel Core 2 Duo, AMD Athlon X2 or better
2GB (32-bit) or 4GB (64-bit) of RAM
300MB of available hard disk space
1024 x 768 pixel monitor
One or more RP1210A compatible communication devices with SAE J1708 and/or SAE J1939 support
NOTE: Make sure to close Navistar Engine Diagnostics before installing a new version
Engine Support
1.MaxxForce 5 (2007-2009)
2.MaxxForce 7 (2007-2009)
3.MaxxForce 7 (2010-2012)
4.MaxxForce 7 (2013-)
5.MaxxForce DT, 9, 10 (2007-2009)
6.MaxxForce DT, 9, 10 (2010-2012)
7.MaxxForce DT, 9, 10 (2013)
8.MaxxForce 11, 13 (2008-2009)
9.MaxxForce 11, 13 (2010-2013)
10.MaxxForce 15 (2010-2013)
11.N9, N10 SCR (2014-)
12.N13 SCR (2013-2014)
13.N13 SCR (2015-)
14.International A26 SCR (2017-)
