OBDSTAR C4-07 (MB-VGS4-0-NAG2) Adapter Full Kit with TCM-012 and Converter V2 for X300 Classic G3/DC706
Designed for drilling access to the FBS4 7G-Tronic VGS4-0-NAG2 Transmission Control Module (TCM), OBDSTAR C4-07 (MB-VGS4-0-NAG2) adapter kit supports solder-free virginizing of used TCM via JTAG mode. It also supports personalization (data transfer) via BENCH or OBD mode, achieving the same effect as ECU clone. This eliminates the requirement for automotive electronics technicians to have advanced soldering skills, making it a powerful tool for professionals in the field.
Supported Tools:
Use with OBDSTAR G3, DC706, etc.
Notice:
1.Need to be used with OBDSTAR MP001
2.If you already have the TCM-012 And Converter V2, you can buy this Simple version
Supported Functions:
Support all vehicles with VGS4-0 NAG2 7G-Tronic TCU of the FBS4/DAS4 generation Mercedes-Benz;
Support solder-free virginizing of used TCM via JTAG mode;
Support personalization (data transfer) via BENCH or OBD mode, achieving the same effect as TCM clone.
Advanced Functions:
Custom positioning board for precise and secure drilling access to the control unit;
Used together with the custom drill head and a handheld drill, the TCM can be easily opened with minimal exterior damage;
High-precision custom board enabling safe, solder-free read/write operations—ensuring reliable data access and operational safety.

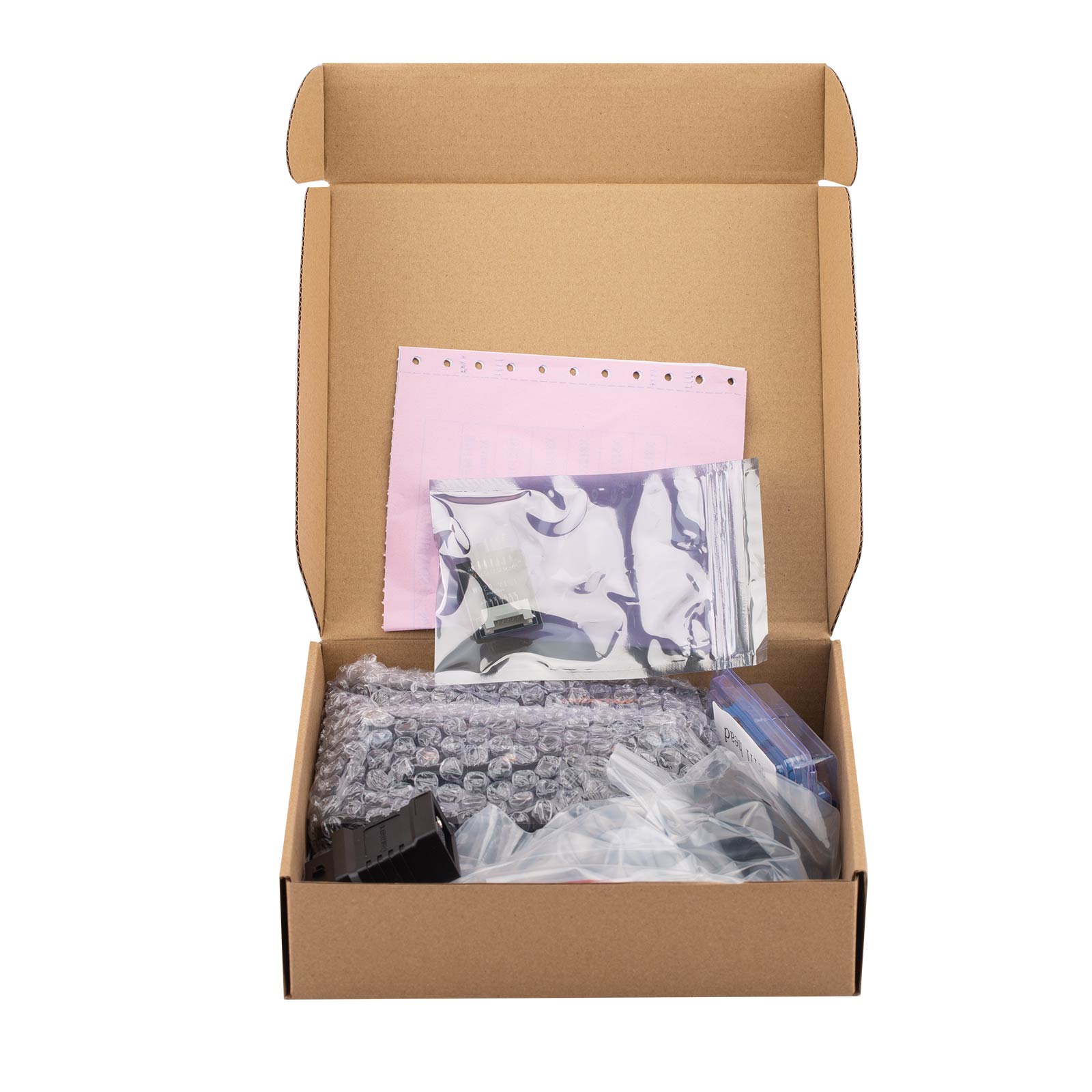

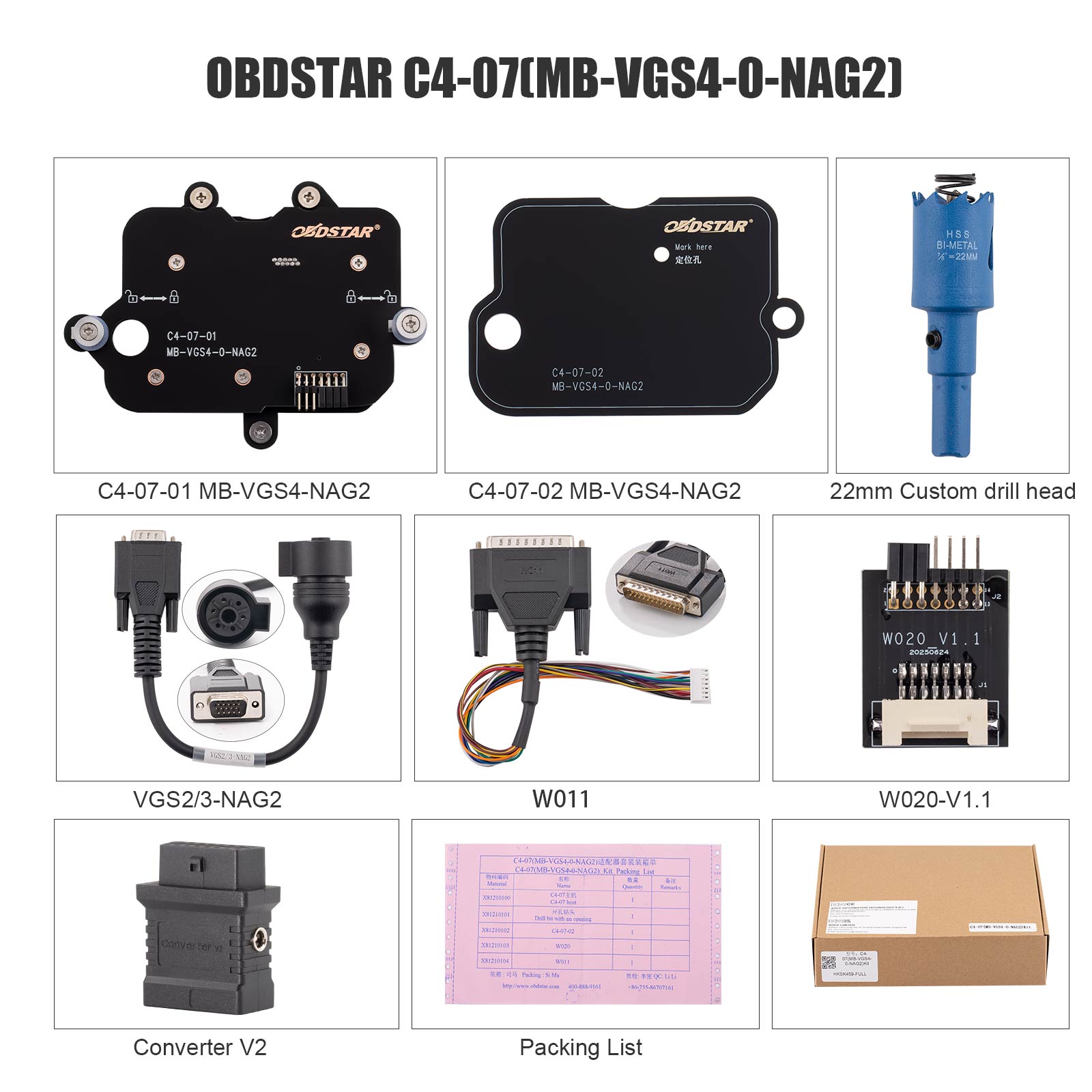

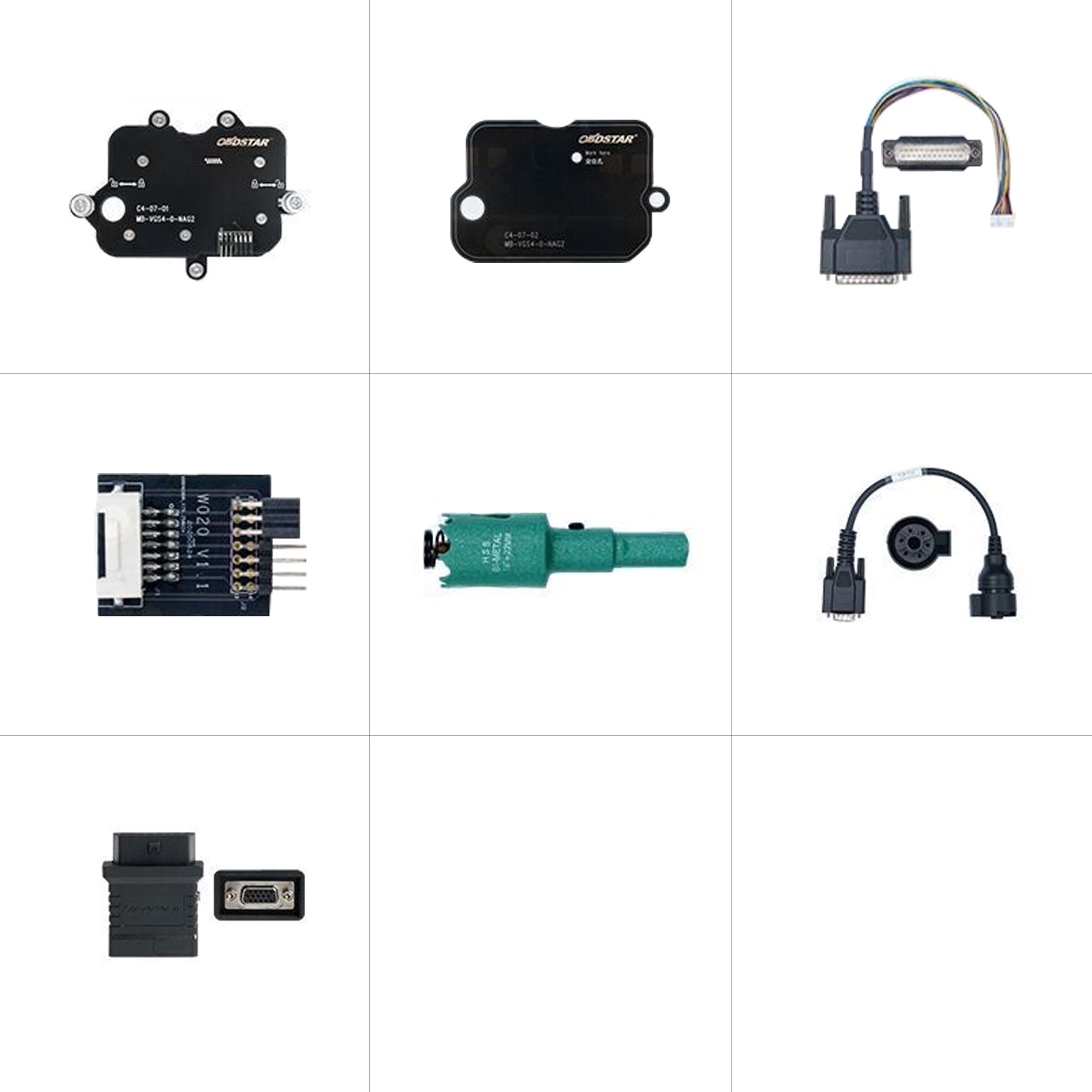

Package includes:

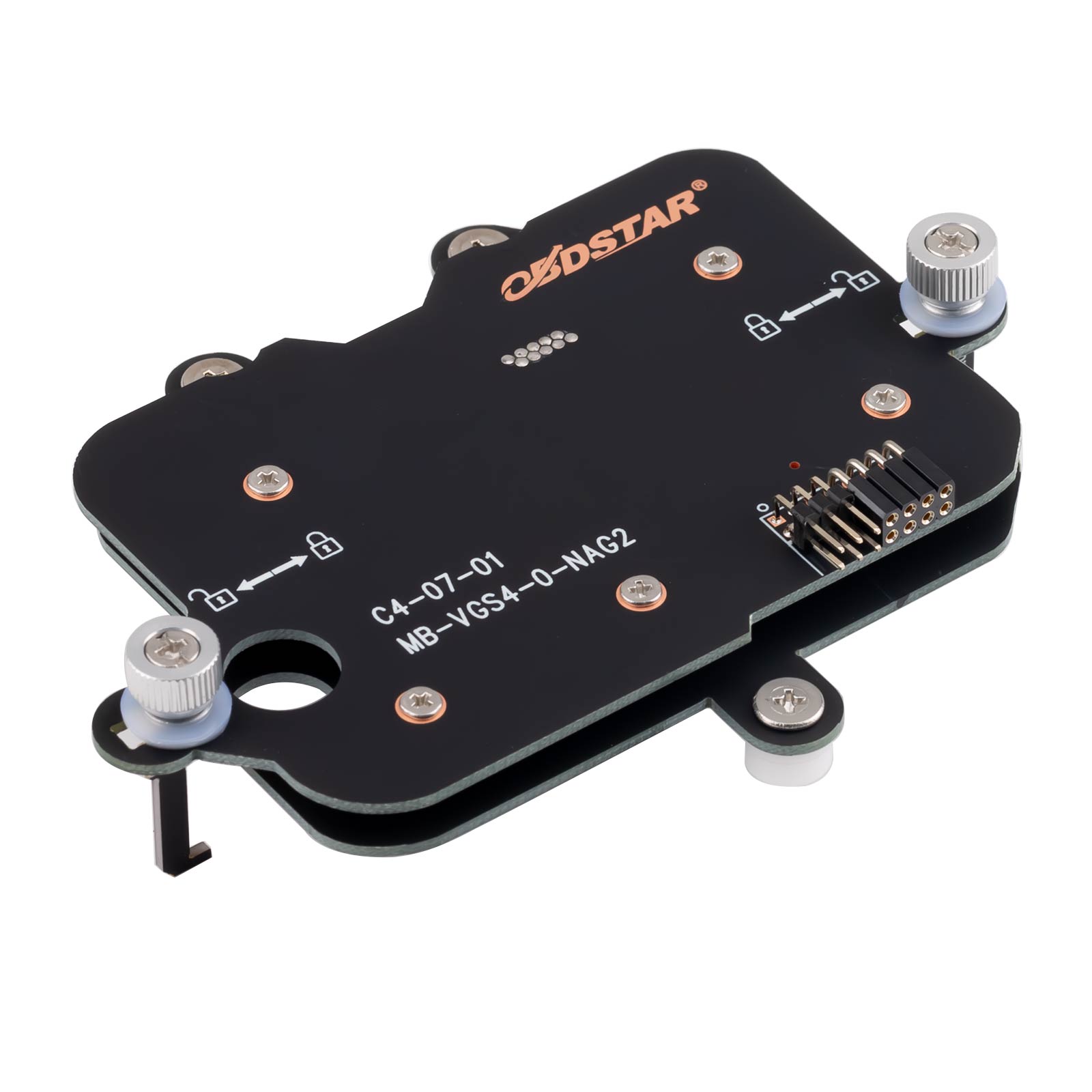

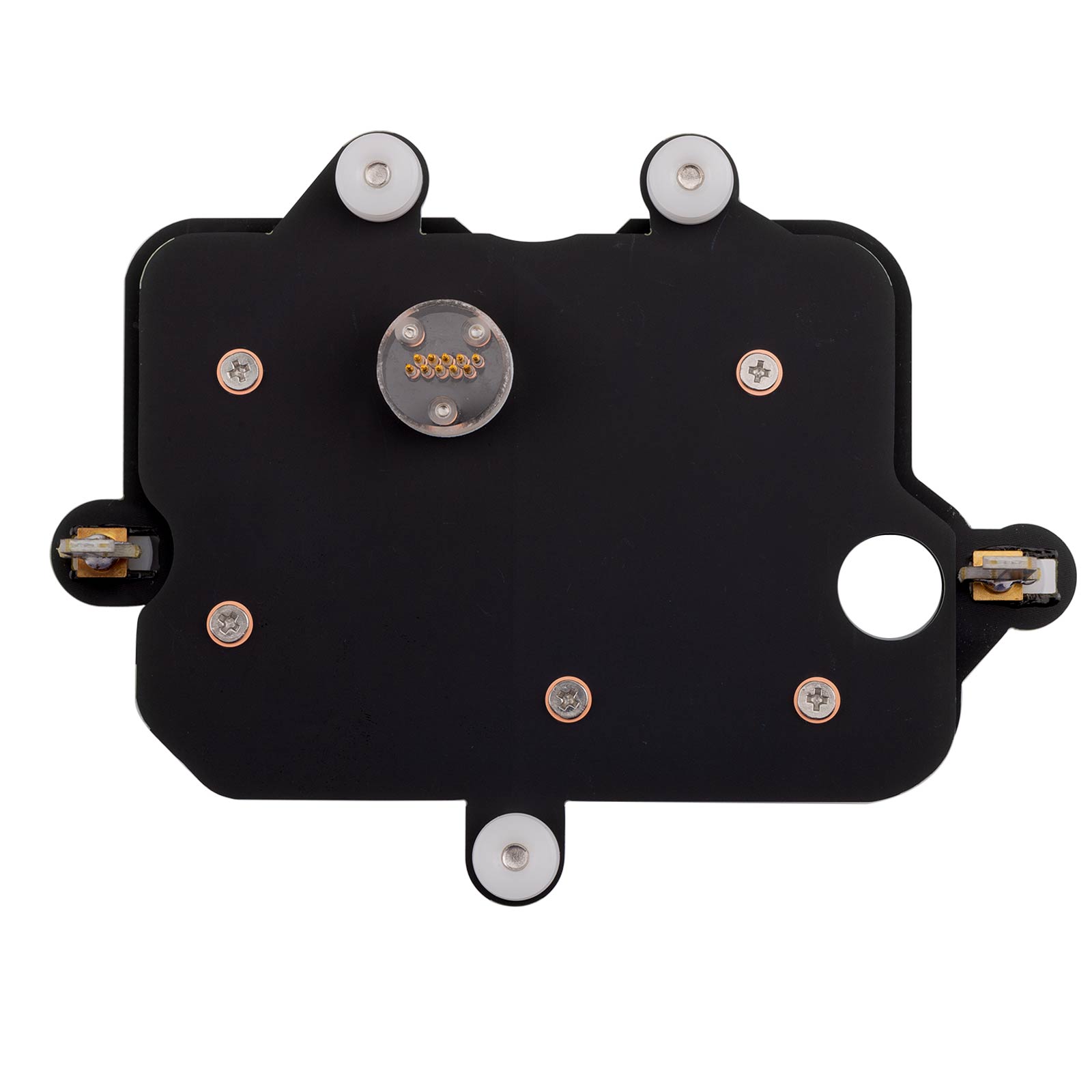

1pc x C4-07-01 soldering-free board

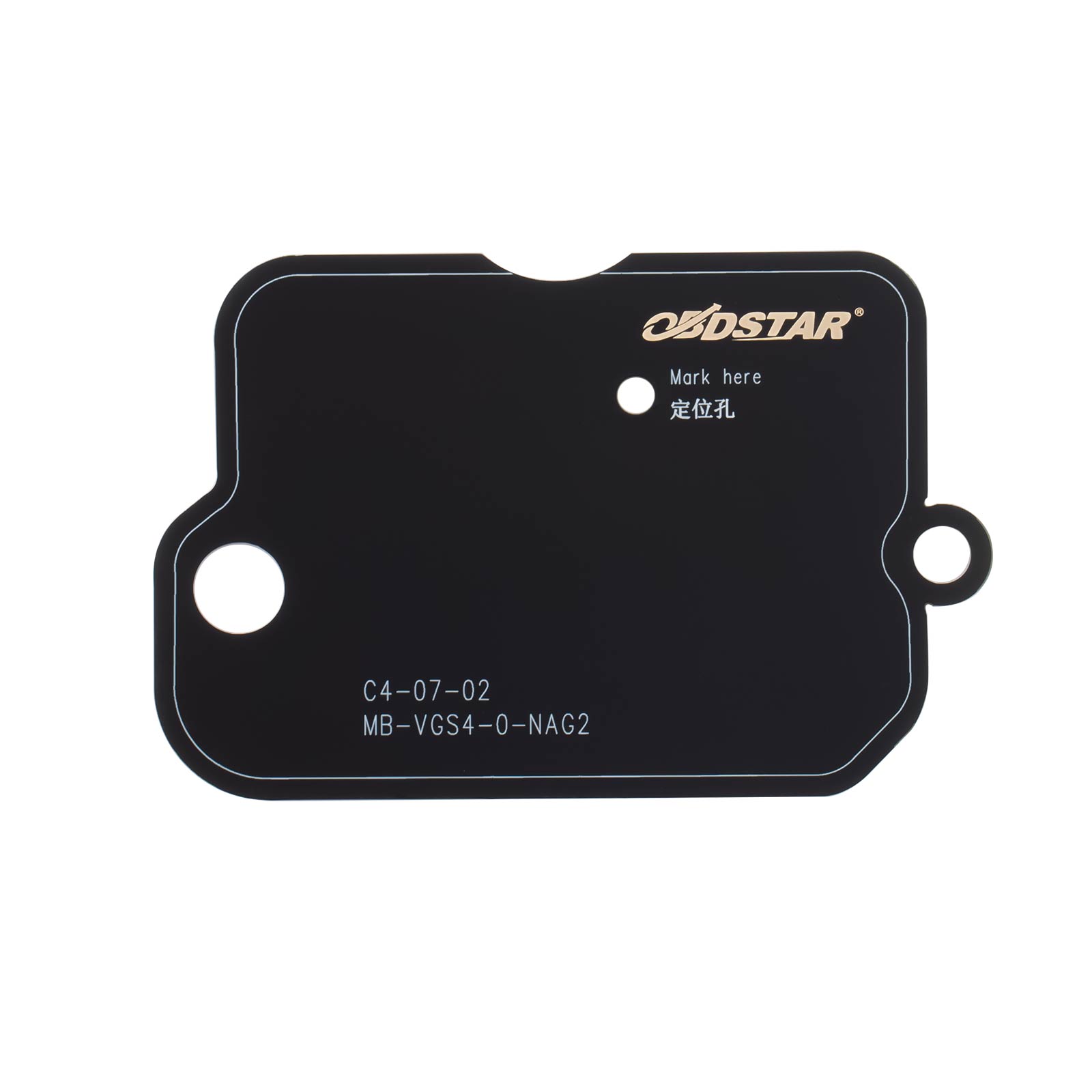

1pc x C4-07-02 custom positioning board
1pc x W011 cable
1pc x W020-V1.1 interface board
1pc x 22mm custom drill head
1pc x TCM-012 cable
1pc x Converter V2
