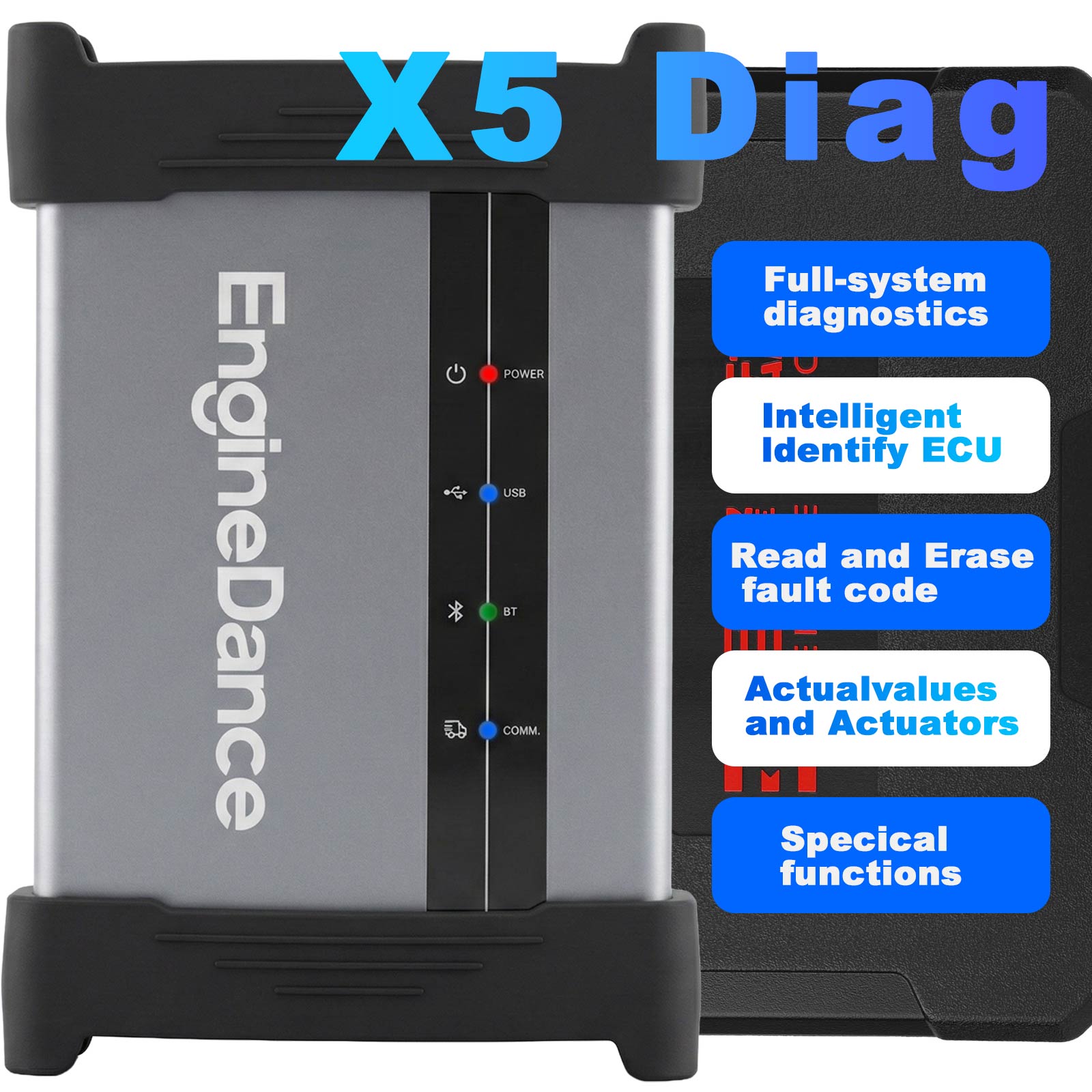

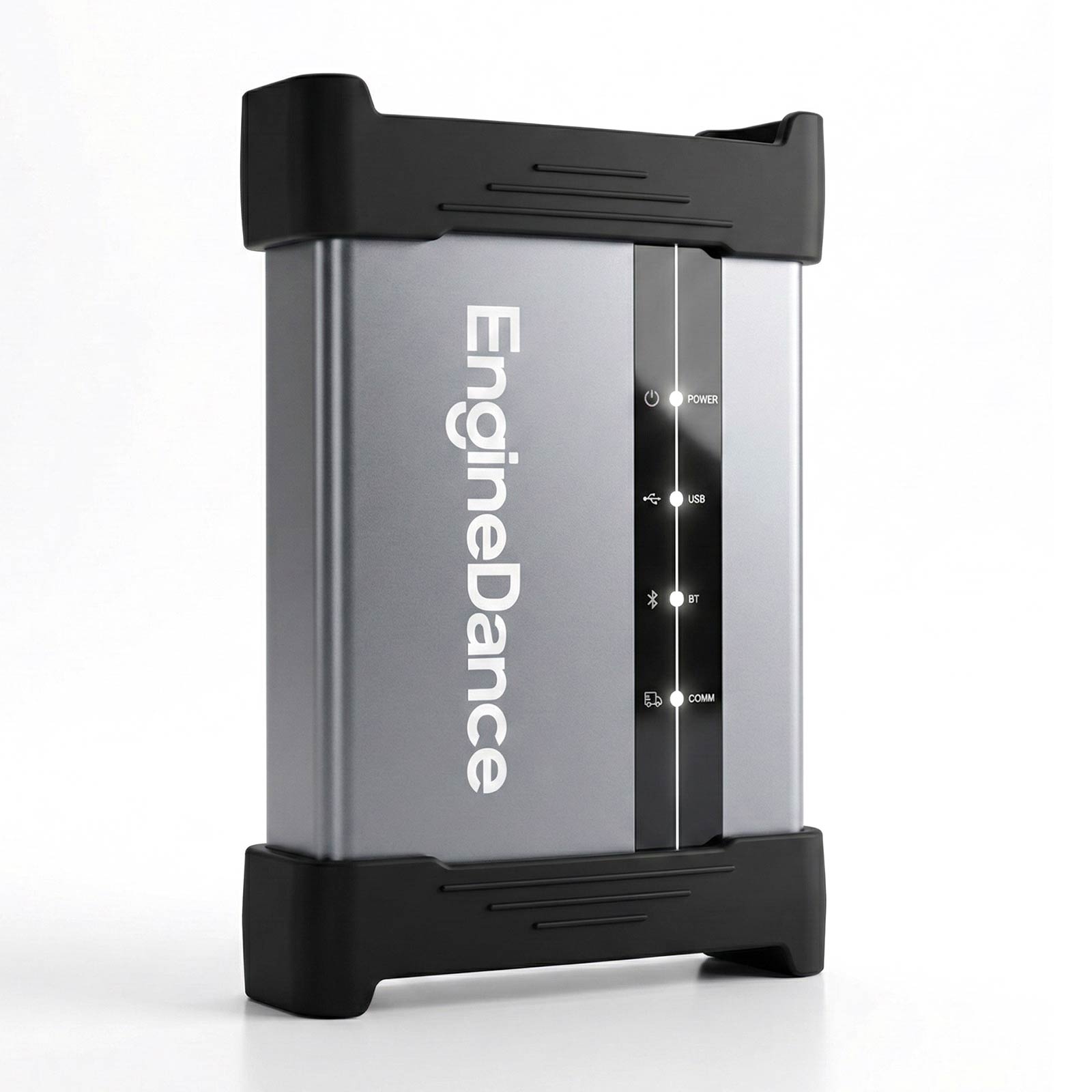

EngineDance X5 2-in-1 ECU Programming &Truck Diagnostics with X5 Box Full Configuration

EngineDance X5 2-in-1 ECU Programming &Truck Diagnostics with X5 Box Full Configuration

EngineDance X5 is a one-step solution for heavy-duty scanner. It supports Chinese brands, Japanese brands, international brands of diesel & natural gas & new energy vehicles.

EngineDance X5 Features:

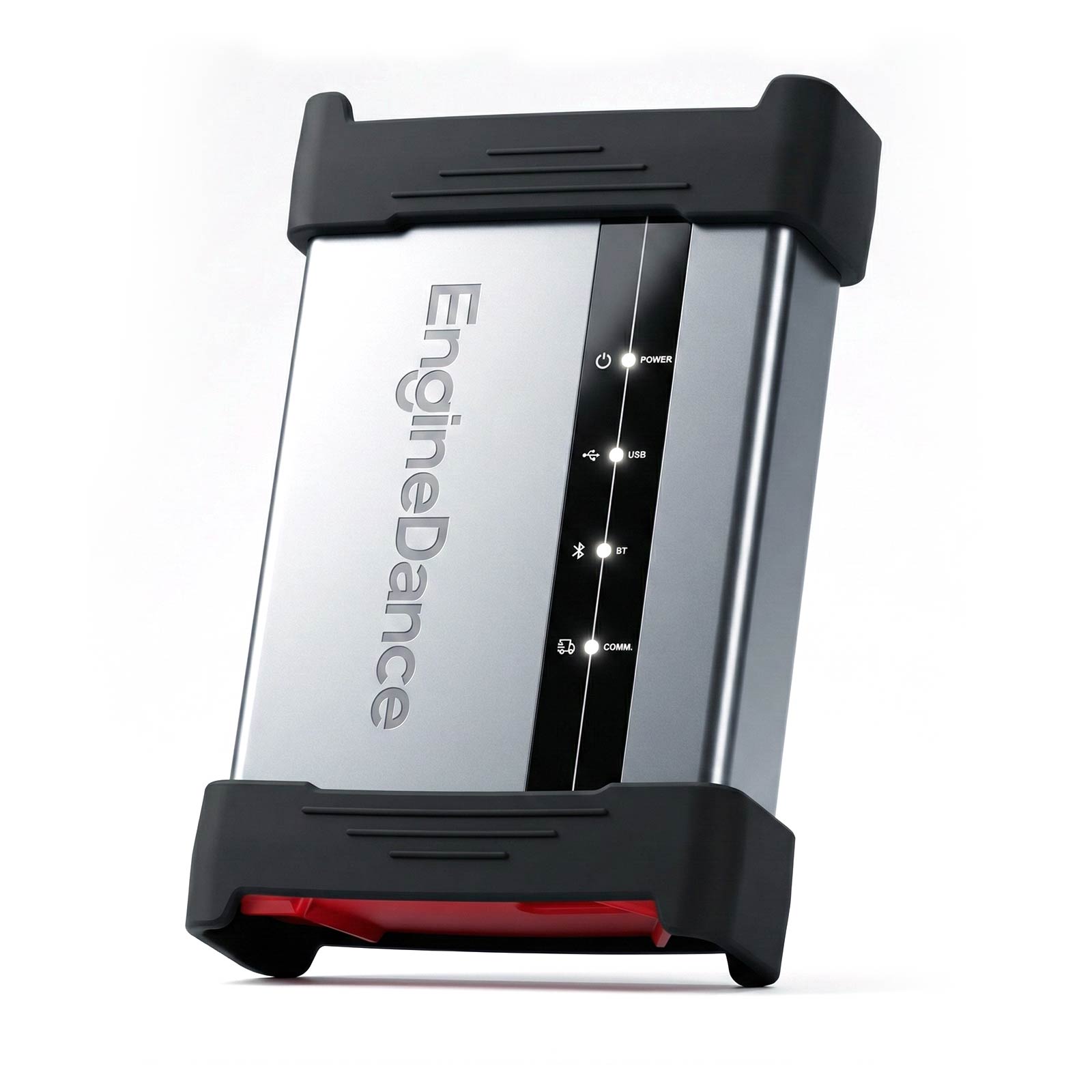

1.Aviation technology is as solid as a rock
Hardware shell adopts aviation alloy laser engraving process, anti-fall, even if the car pressure can be easily dealt with.

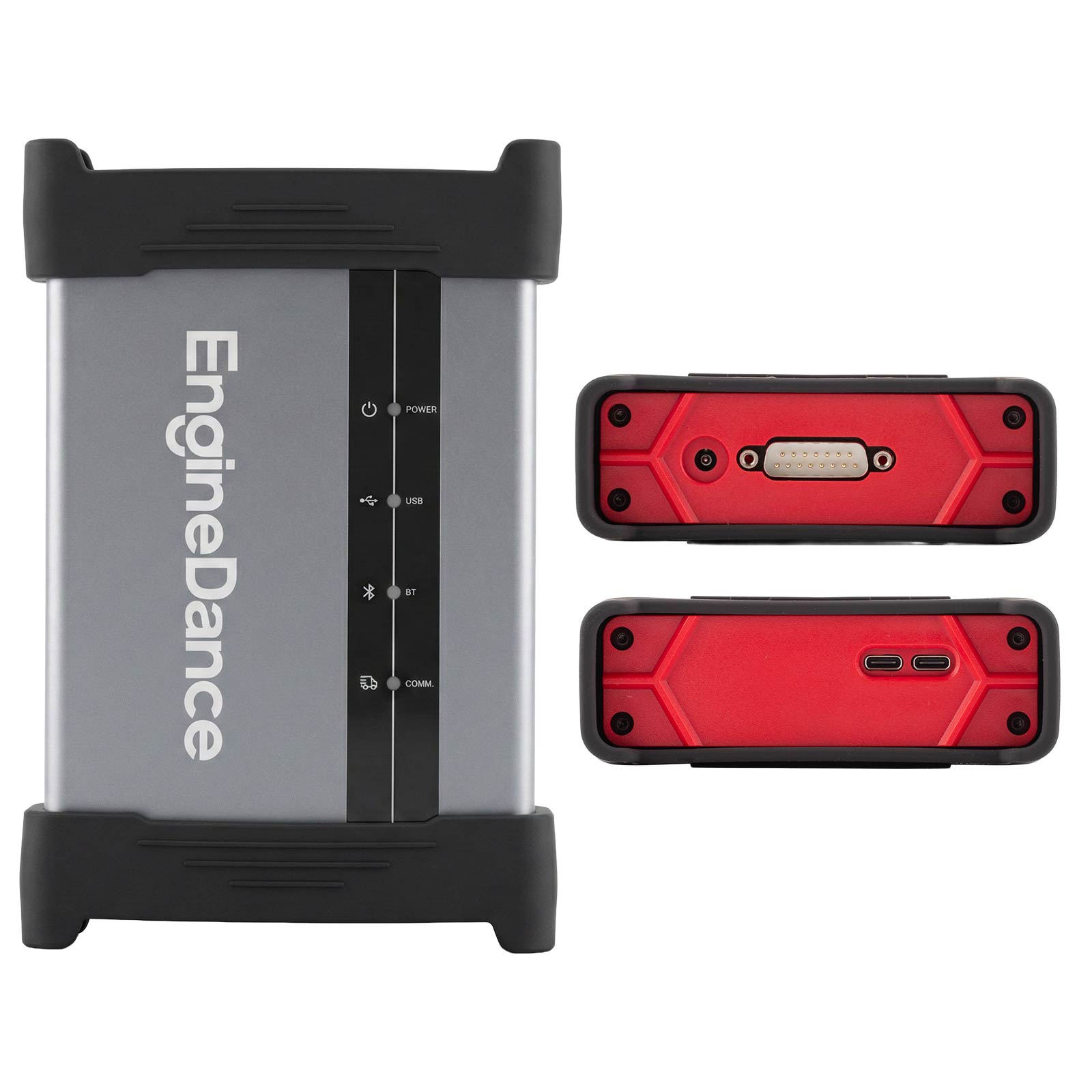

2.Dual mode communication convenience - speed
Wireless Bluetooth and high-speed USB-typc C dual-mode communication, balancing convenience and speed.
3.Two year warranty and worry free after-sales service
Two years of extended warranty period ensures worry free use of the product. After 2 years, the Upgrade cost: $300 per year.
4. Multi-language supported: Chinese, English, Russian, and Vietnamese.
5.Supported Models: Light trucks, heavy trucks, buses, agricultural machinery, construction machinery and cover over 98% of Chinese vehicle models.
6.Supported ECUs: Bosch, Denso, Cummins, Delphi, Continental, Trw, Ectek ...
7.Supported Engines: Cummins, Perkins, Caterpillar, Weichai, Yuchai, Faw, Yunnei, Doosan, Isuzu, Komatsu, Yanmar, Deutz, YTO, Econtrols, WoodWard, Mercury, Quanchai, SDEC, Greatwall, Changchai, DCD, Sida, XinChai ..

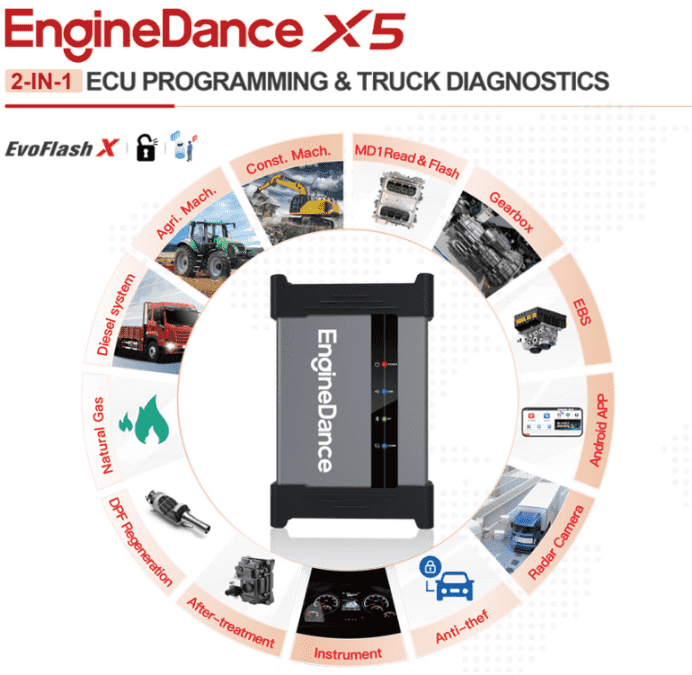

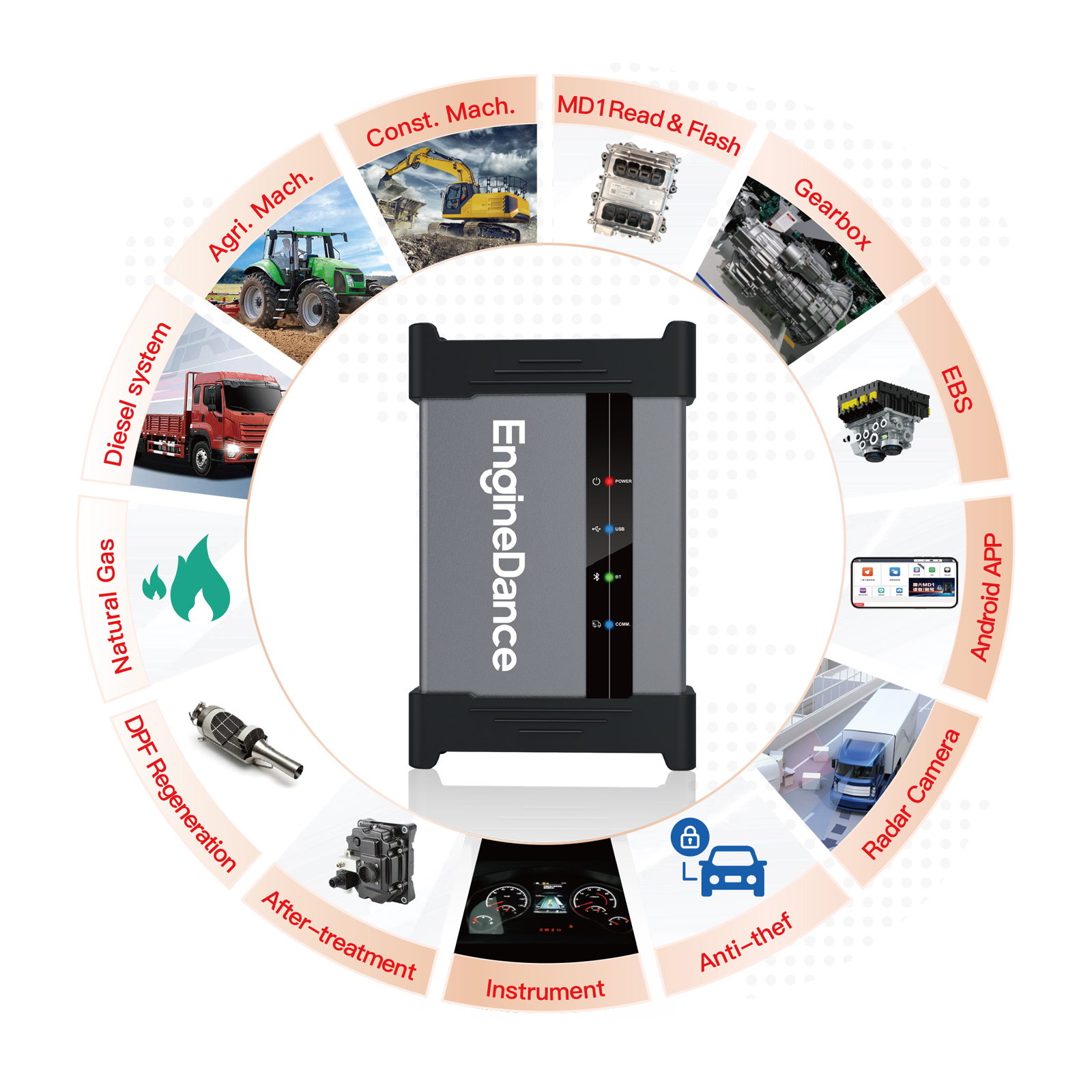

EngineDance X5 Functions:
BOSCH MD1 Read & Flash（support partly Encrypted ECU）
EDC17  Encrypted Series Read/Flash
International Vehicle Diagnosis/Flash
Compatible with Various Diesel/Natural Gas
Transmission Diagnosis/Self-Learning/Flash
BCM/ Instrument Diagnosis/Calibration/Flash
Engineering Machinery Diagnosis/Read/Flash
Agricultural Machinery Diagnosis/Calibration/Flash
Support Various Deep Code Clearing & fault Light Turn Off
Urea Induction Reset
Remotely Unlock encrypted MD1 ECU (not all, partly, contact us to get ECU list)

EngineDance X5 Advantages:
Powerful and Stable ECU re-programming Function
Covering most ECU Flash
(FAW/CNHTC/SINOTRUK/SITRAK/DongFeng/Foton/CAMC/SHACMAN/SFH/JMC/JAC/XCMG/SANY/CHENGLONG)

Note: Engine Dance X5 Supports reading and writing of over 300 ECU models of Chinese commercial vehicles,covering almost all electronic control systems of commercial vehicles in China, not listed one by one.Gas flash, Woodward OH6, OH2.0, Bosch EGC4 flash;Post processing DCU flash Transmission module flash, retarder flash
Stable flashing, simple operation, using dual verification technology, stable flashing and extremely low probability of flashing death; Easy to operate and get started with VCU/CBCU/BCM/Instrument writing (FAW, CNHTC, DF, Foton)

Advanced features, professional and comprehensive
DPF regeneration with comprehensive coverage
Calibration
SCR detection
NOX Sensor detection
VECU maximum speed adjustment calibration
Urea injection temperature setting
CAN Bus, Instrument drive.
Read OBD pin voltage

Remote assistance and timely service
Remote assistance, one click start, the distance between you and engineers and teachers is only one button. Engineers or teachers can remotely help you Flash Diag and calibration, which is simple and efficient. You no longer have to worry about not being able to operate the computer or flash.

One click software upgrade
Software update, one click software update, without complex operations, only one click, the software automatically updates to the latest version

International vehicle brand diagnosis and re-programming
Diagnosis: Volvo, Man, Scania, Mercedes-Benz, Daf, Hino, Fuso, Iveco, UD, Caterpillar, Hyundai, Kia, Doosan, Isuzu, Toyota, Ford, Jeep, Land Rover, VW ...

Supported Vehicle Brands:

Programming ECU:
Scania
Scania EMS/EDC S6 250Kbps (MPC555/556)
Scania EMS S6 500Kbps (MPC555/556)
Scania EMS S8 250Kbps (MPC5566)
Scania EMS S8/EMD1 500Kbps (MPC5566)
Scania EMS S8/EMD1 250Kbps (MPC5566) –Bam
Scania EMS S8/EMD1 500Kbps (MPC5566) –Bam
Reading, writing, checksum correction.
MAN
MAN Bosch EDC7C32 [0281020067]-OBD/Bench
MAN Bosch EDC17CV42 [0281020273, TC1797]- Bench
MAN Bosch MD1CE100 TC299- Bench
Reading, writing, checksum correction.
Denso SH725XX/1N83M/ SH705X Bench
1N83M FLASH Reading, writing, checksum correction
1N83M EEPROM Reading, writing
SH72543 FLASH Reading, writing, checksum correction
SH72543 EEPROM Reading, writing
SH7055 FLASH Reading, writing, checksum correction
SH7055 EEPROM Reading, writing
SH7058 FLASH Reading, writing, checksum correction
SH7058 EEPROM Reading, writing
SH7059 FLASH Reading, writing, checksum correction
SH7059 EEPROM Reading, writing
Toyota/Lexus Gen 3
R7F701202/R7F701216 P5-UDS
LC300/LX500d 3.3TD P5-UDS (F33A-FTV/R7F701216)
LC300/LX500d 3.3TD MCU #2 P5-UDS (F33A-FTV/R7F701216)
LC150/Hiace/Hilux/Revo/Fortuner 2.4TD, 2.8TD P5-UDS (1GD-FTV/2GD-FTV/R7F701216)
LC150/Hiace/Hilux/Revo/Fortuner 2.4TD, 2.8TD 6AT Gearbox P5-UDS (AC60F/R7F701201)
Camry/ES/Rav4/UX 2.0L, 2.5L P5-UDS (M20A-FKS/A25A-FKS/R7F701202)
Camry/ES/Rav4 2.5L 8AT Gearbox P5-UDS (UB80/R7F701201)
Camry/ES/Rav4 2.5L HV P5-UDS (A25A-FXS/R7F701202) [Test]
Corolla 2.0L P5-UDS (M20A-FKS/R7F701202) [Test]
Highlander/Siena 2.5L HV P5-UDS (A25A-FXS/R7F701216) [Test]
Yaris GR 1.6T P5-UDS (G16E-GTS/R7F701216) [Test] [RD/WR/CK]
Reading, writing, checksum correction
Trucks Delphi ETC3
Reading and writing via OBD2 connector via CAN-bus of Delphi ETC3 ECUs used in
DAF, Kenworth, Peterbilt, Hyundai trucks.
DAF/Industrial Delphi ETC3
Delphi ETC3 REV A/B/C ECUs based on MCU NXP MPC5566 with internal flash memory 3 Mb.
Reading of map area and writing with checksum correction via CANbus via OBD2 or on the BENCH.
REV 0 and REV H ECUs are not supported.
Hyundai Delphi ETC3
Delphi ETC3 ECUs based on MCU NXP MPC5566 with internal flash memory 3 Mb.
Reading of map area and writing with checksum correction via CANbus via OBD2 or on the BENCH.
Trucks Delphi DMCI CAN
Module for reading and writing by CAN-bus Delphi DMCI ECUs used in DAF and Hyundai trucks.
ECU is based on MCU Motorola MPC561 with internal flash memory 2.0Mb.
Allows to read and write calibration area through CAN-bus with checksumm correction on writing.
DAF/Kenwroth Delphi DMCI
Hyundai Delphi DMCI
IVECO Light truck
IVECO EDC17C69 Bench
IVECO EDC17C49 Bench
IVECO MD1CS069[Support Bench lock Ecu]
IVECO MD1CS089 Bench
IVECO DCU17PC42/PC43 Bench
Isuzu/Transtron
ISUZU 4HK1/6HK1/4JJ1:SH7058
ISUZU 6HK1XDIAG/4JJ1XDIAG M4S/L4S:SH72533
ISUZU 6HK1/6WG1 M5.3/M5.2:SH72544/SH72546
ISUZU-4HK1/6HK1/4JJ1 L5.2/L5.3/L5.4:SH72544/SH72546
Kia/Hyundai
Modern/Kia heavy-duty truck engine Delphi-ECU: DMCl (chip: MPC561)
D6CF Delphi ETC3 Series MPC5566-OBD
Kia/Hyundai Kefico/Denso 2.5L CRDI (SH72546) MB275700-58xx-OBD
Kia/Hyundai Euro 6 (Denso SH72543)-Bench
Kia/Hyundai DCM3.7AP
Reading, writing, checksum correction.
BOSCH MD1 Bootloader
MD1CE100 AURIX SAK-TC299TP
MD1CE108 ST-SPC5898
MD1CS089 SAK-TC299TP
MD1CS069 SAK-TC299TP
MD1CC878/868 ST-SPC58XX
Reading, writing, checksum corrections
Volvo Truck
Volvo/Renault/Construction Machinery EMS2.0(MPC56X)-OBD
Volvo/Renault/UD/MACK truck EMS2.2(MPC5554)-Bam
Volvo/Renault/UD/MACK truck EMS2.2(MPC5554)- Bench
Volvo/Renault/UD/MACK truck EMS2.3(MPC5674F)- Bench
Volvo/Renault/UD/MACK truck EMS2.4(MPC5777C)- Bench
Reading, writing, checksum correction.
Ford Transit /Ranger, Land Rover Defender
Land Rover Defender SID208- Bench/ Bam
Ford Ranger SID209-OPEN
Ford Transit SID208 OBD/Bench / Bam
Ford Transit SID209 OBD/Open
SID604 OBD writing, checksum
Reading, writing, checksum correction.
Toyota/Lexus/Scion/Hino Gen 2
76F0196/198/199/219 P5-CAN-bus
76F0199 GearBox P5-CAN-bus
Reading, writing, checksum correction.
DELPHI
Yuchai DCM3.2/DCM6.2AP/DCM6.24
Yuchai DCM7.1AP/ DCM7.24
Dongfeng M9T DCM7.1AP
Great Wall/Haval DCM6.2AP
HYCET Great Wall/ZhongXin/Changan Kaicene DCM7.1AP
Great Wall/Haval DCM3.7AP
Kia/Hyundai DCM3.7AP(SH725xx)
DOOSAN/Bobcat/Kioti/McCormick DCM3.7AP
SsangYong 2.0L XDI DCM3.7AP
DOOSAN/Bobcat/Kioti/McCormick (DCM3.7AP)
GM/Opel/Chevrolet 2.0L, 2.2L CDTI (DCM3.7AP)
JAC DCM6.2AP
Qingling/Isuzu DCM6.2AP
Qingling/Isuzu DCM7.1AP
Yunnei DCM6.24
Yunnei DCM7.24
Changan DCM7.1AP
OBD Reading, writing, checksum correction.
DCM7.1AP/ DCM7.24 BENCH Reading, writing, checksum
DCM 6.2AP open model SPC56X
BOSCH EDC
DCU17CV51 TC1724 Bench (SAIC/JBC)
DCU17HD01/DCU2.2 TC1766 (Hino, Cummins, Hyundai, CAT, CASE, Isuzu)
VD1CC001 Euro 6(Chip: SPC574X, Hino. ISUZU Euro 6 models)
DCU17PC42/PC43 Bench (IVECO, FOTON, HYUNDAI)
EDC17CV44/54 OBD/Bench/Open
EDC17C81 OBD/Bench/Open[Support Bench lock Ecu]
EDC17C53 OBD/Bench/Open[Support Bench lock Ecu]
EDC17C55/C63/C04 OBD/Bench/Open[Support Bench lock Ecu]
EDC17CV41 OBD/Bench/Open(WeiChai, Iveco,Doosan,CASE,New Holland, CLAAS)
EDC17CV42 Bench MAN
EDC7UC31 MPC561/562 OBD/Bench
EDC7C1(lveco, Doosan, etc,series chip:MPC555)
EDC7C4, EDC17CP15/CP52 Chip:MPC555 OBD
EDC16UC40 MPC561/562 OBD/Bench
EDC16C39 MPC561/562 OBD/Bench
EDC17CP52 TC1797 Bench(Ivevo,Fuso)
EDC17C69 TC1793 Bench IVECO
EDC17C49 TC1797 Bench IVECO
EGC4 TC1797 BGA Bench
EDC17C83 TC1793 Bench ISUZU
MEG17.9.1X, Chip:TC176211766/179211796 (Bench Mode)
MEG17.9.2X, Chip:TC17241172817671178211784/1797 (Bench Mode)
Others
Continental FAW 52E/91E SPC563X OBD/Open/checksum
Continental Weichai WISE15/15C SPC564X OBD/Open/checksum
Continental FAW 32F/36F OBD /checksum
Econtrols LNG/CNG 3G/4G OBD Model
Woodward LNG/CNG OBD Model/Recover
ZF Transmission OBD writing/checksum
ZF Retarder OBD writing
WABCO ECAS Reading, writing
WABCO ABS/EBS Reading, writing
Knorr ECAS Reading, writing
Knorr ABS/EBS Reading, writing
VCU/CBCU/BCM/Instrument writing (FAW, CNHTC, DF, Foton,)
Covering most ECU Flash
(FAW/CNHTC/SINOTRUK/SITRAK/DongFeng/
Foton/CAMC/SHACMAN/SFH/JMC/JAC/XCMG/
SANY/CHENGLONG)

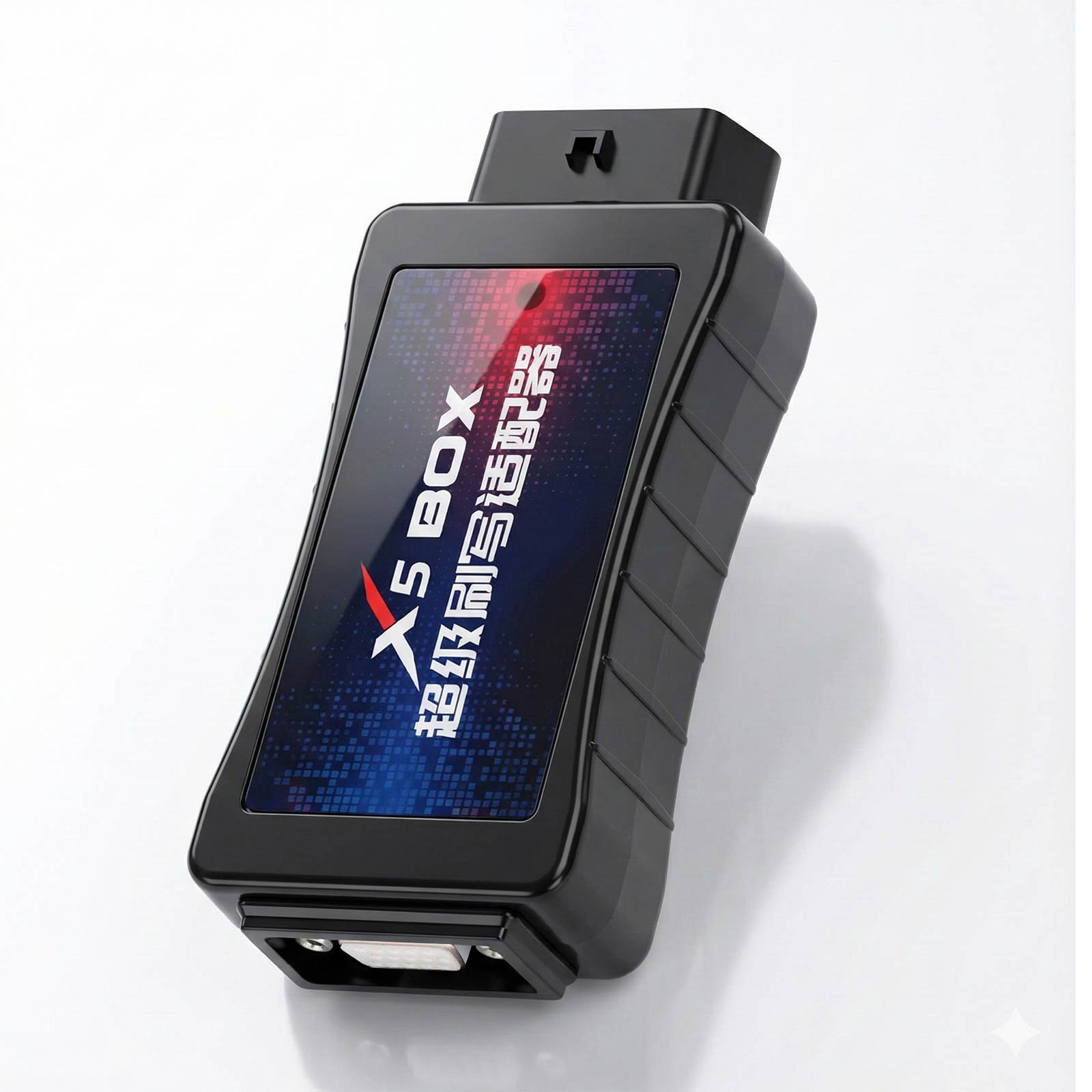

X5Box:
Volvo/UD/MACK Series
Volvo/Renault/UD/MACK series MODE+ECU Flash+Checksum+Recover file corrupt
Volvo/Renault/Construction Machinery Engine EMS2.0 (Euro 2/3-chip: MPC56X) 【 OBD Mode 】
Volvo/Renault/UD/MACK truck engine EMS2.2 (Chip: MPC5554) 【 BAM Mode 】
Volvo/Renault/UD/MACK truck engine EMS2.2 (Chip: MPC5554)【 BENCH Mode 】
Volvo/Renault/UD/MACK truck engine EMS2.3 (Chip: MPC5674F)【 BENCH Mode 】
Volvo/Renault/UD/MACK truck engine EMS2.4 (Chip: MPC5777C)【 BENCH Mode 】

SCANIA Series
Scania S6/S8/EMD1 engine series MODE+ECU Flash+ Checksum+Recover file corrupt
Scania S6 engine [Chip: MPC555/MPC556] - OBD Mode
Scania S8/EMD1 Engine [Chip: MPC5566] - OBD Mode
Scania S8/EMD1 Engine [Chip: MPC5566] - BAM Mode

HYUNDAI Series
D6CF Delphi ETC3 Series OBD MODE ECU Flash
[HINO/HYUNDAI] DCU17HD [TC1766] Bench read/write/checksum
Denso2-plug[Chip:SH72546 MB275700-57XX] CRDI-E6 2.5

Denso  Series
[HINO] Denso 3-plug [Chip:SH72543/1N83M]
[SDEC] Denso 3-plug [Chip:SH72543/1N83M]
[Mitsubishi Fuso] Denso 3-plug [Chip:SH72543/1N83M]
[HYUNDAI/Kia] Denso3-plug [Chip:SH72543/1N83M]
[HYUNDAl/Kia] Denso2-plug[Chip:SH72546 MB275700-57XX] CRDI-E6 2.5
[Denso 2-plug] [93C86 SH7058] Bench
[Denso 5-plug] [93C86 SH7055/7058] Bench
[SDEC/JCB…] DCU Bench read/write/checksum
[HINO/HYUNDAI] DCU17HD [TC1766] Bench
[Fuso]SANY…Construction Machinery D04/D06 Engine Bench mode
[Fuso] KATO…Construction Machinery EDC7C4, EDC17CP15/CP52 Chip:MPC555 OBD mode

MAN Series
MAN (TGA/TGL/TGM/TGS/TGX) engine EMS  (OBD/BEACH ECU Flash)
EDC7C32 MODE+ECU Flash+Checksum EDC17CV42 MODE+ECU Flash+Checksum
MD1 Series MODE+ECU Flash+Checksum
DAF/Kenwroth
Delphi-ECU:DMCI read/write/checksum
Delphi-ECU:ETC3/ETC4 read/write/checksum

Continental Series
Continental SID604 ECU Flash/Checksum
SID208/209 Data Checksum

Ford SID209OBD Encryption ECU MODE Flash Ford SID209 Open Mode Recover file corrupt
Ford SID208 Open Mode Recover file corrupt
Ford SID208 Bench MODE

IVECO Series
IVECO EDC17C69 Bench MODE/ECU Flash
IVECO EDC17C49 MODE/ECU Flash
IVECO MD1CS069 MODE/ECU Flash【Support encryption ECU】
IVECO MD1CS089 Bench MODE/ECU Flash   IVECO handle DCU17PC43/PC42 MODE/ECU Flash 【Equipment IVECO,foton,HYUNDAI】

ISUZU/Transtron Series
ISUZU-4HK1/6HK1/4JJ1/6WG1E5NC[Transtron-SH7058]
ISUZU Construction Machinery [Old]-6WG1XDHAG/4JJ1XDHAG [Transtron-SH7059]
ISUZU Construction Machinery [Old]-6HK1XDIAG/4JJ1XDIAG [Model M4S/L4S: SH72533]
ISUZU Construction Machinery [New]-GIGA-6HK1/6WG1 [Model M5.3/M5.2: SH72544/SH72546]
ISUZU-4HK1/4J1 [Model L5.2/L5.3/L5.4/L5.5-SH72544/SH72546]
ISUZU-RZ4E 12V EDC17C83

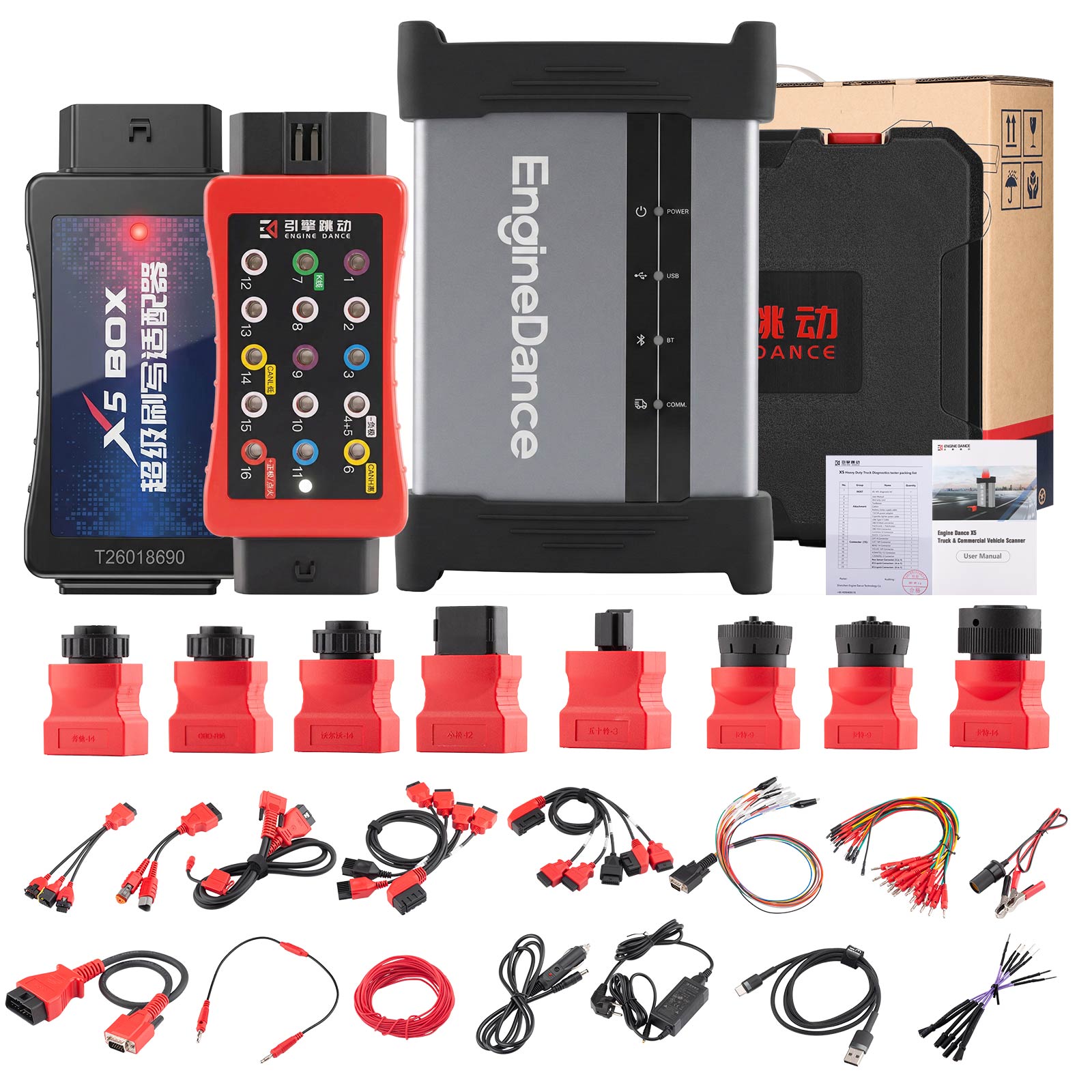

Package includes:

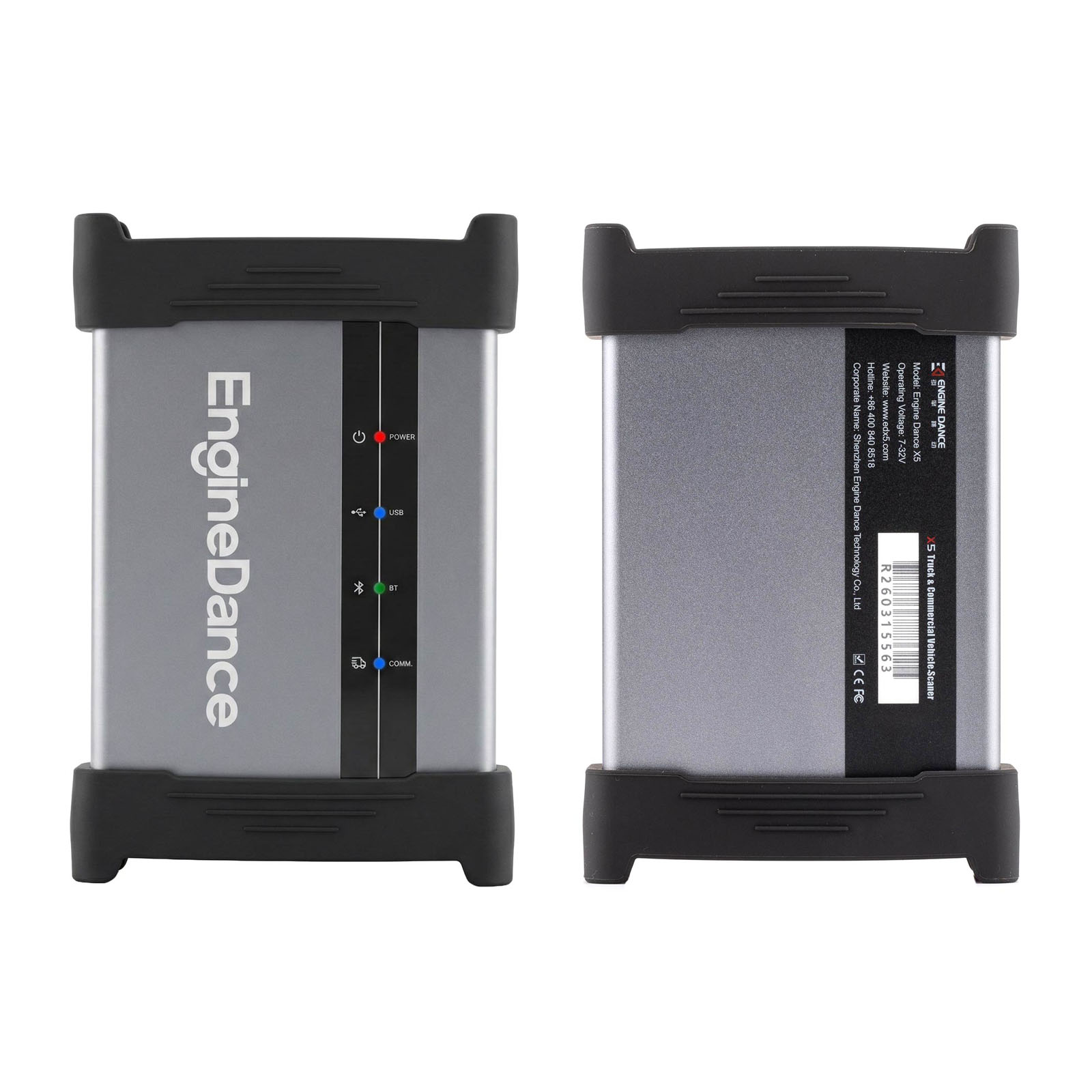

1pc x X5 VCI diagnostic kit

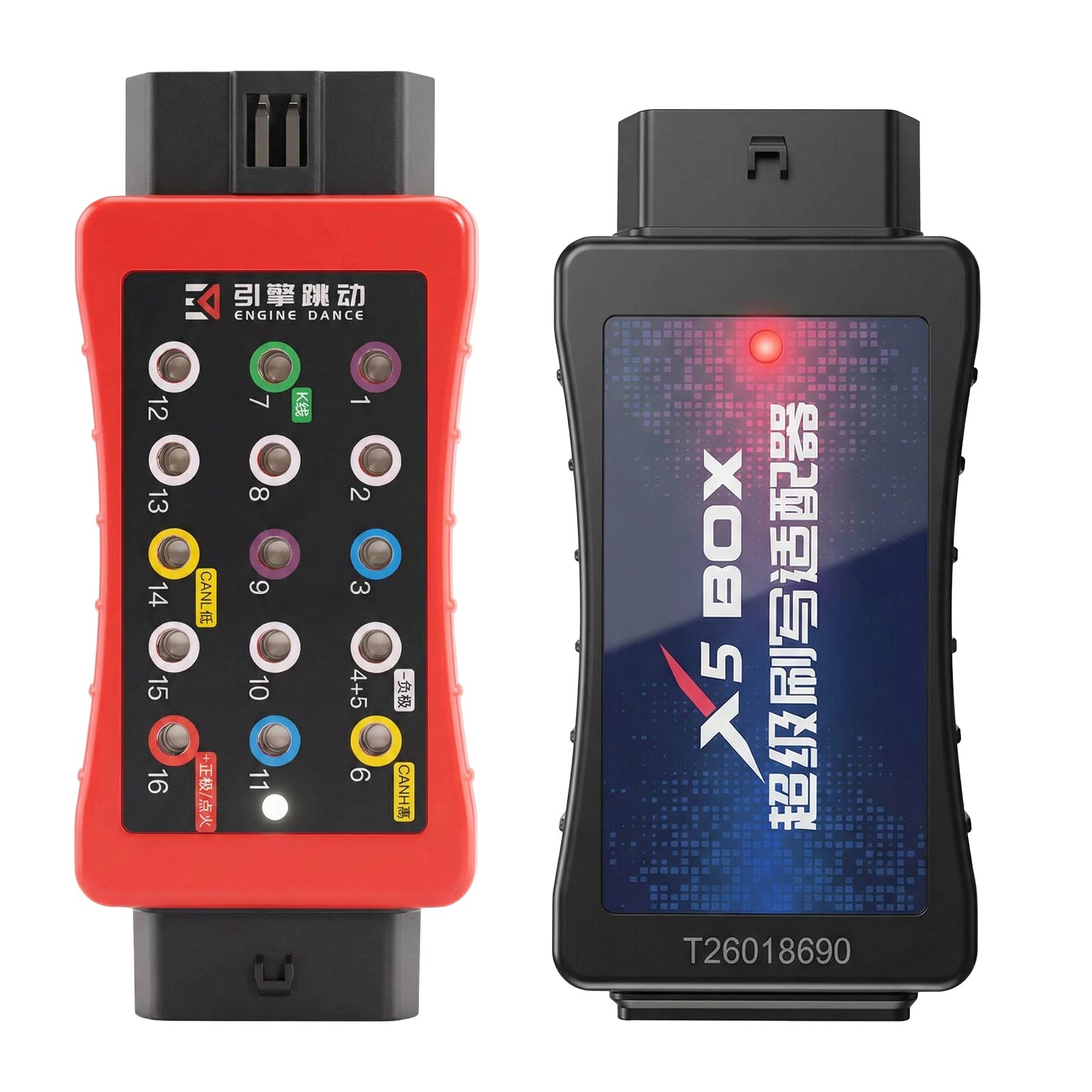

1pc x X5 BOX
1pc x battery clamp supply cable
1pc x 15V/3A power adapter
1pc x cigarette lighter power cable
1pc x Type-C cable
1pc x OBDII main connector

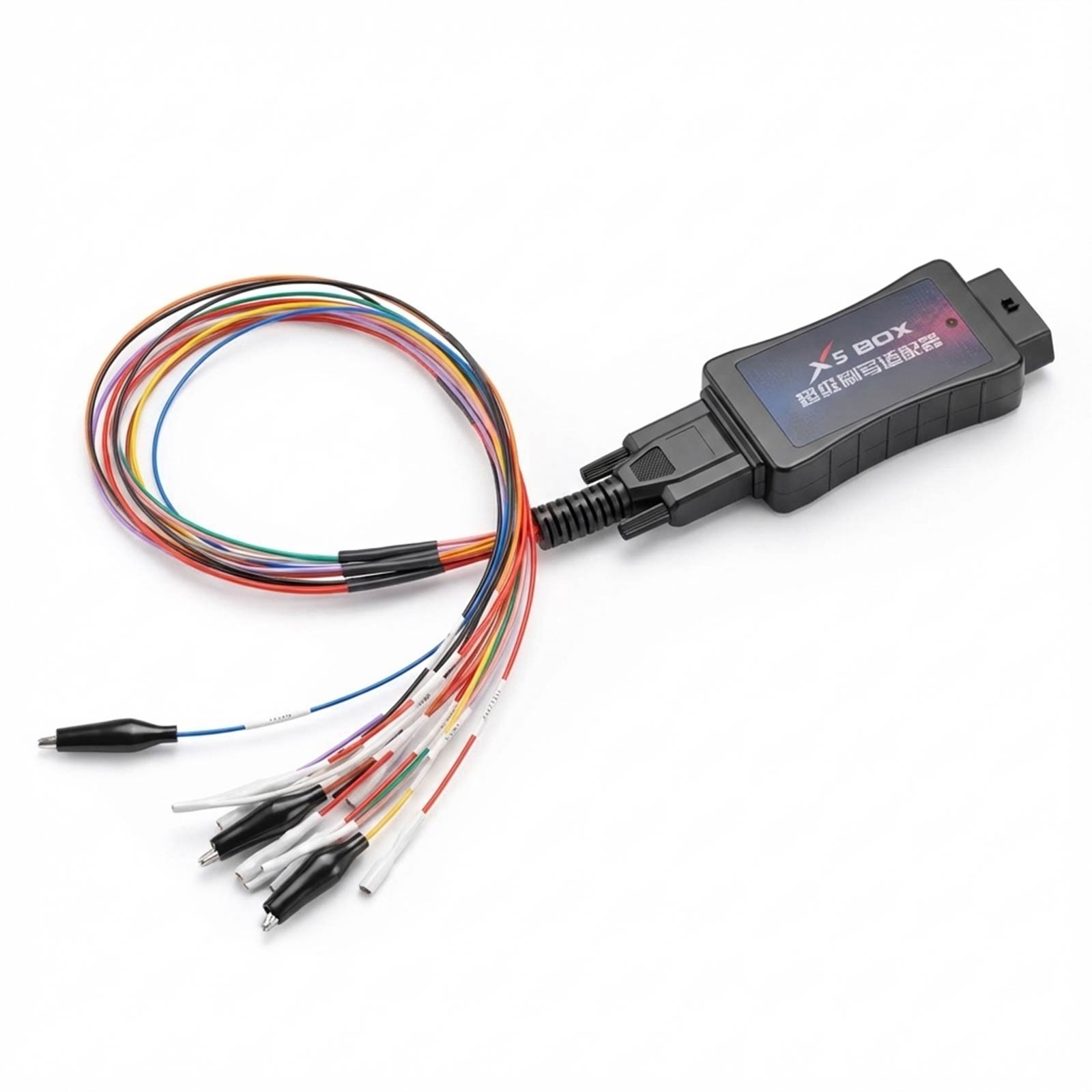

1pc x Patchcords +Patchcases
1pc x OBD-R16 connector
1pc x Cummins-9 connector
1pc x ISUZU-3 connector
1pc x CAT-9 connector
1pc x CAT-14P connector
1pc x BENZ-14 connector
1pc x VOLVO-14P connector
1pc x KOMATSU-12 connector
1pc x CUMMINS-3 connector
1pc x Nox Sensor Connector(3-in-1)
1pc x ECU quick connector(4-in-1)
1pc x ECU quick connector(6-in-1)
1pc x user manual
1pc x warranty card
1pc x toolboxes
1pc x carton
