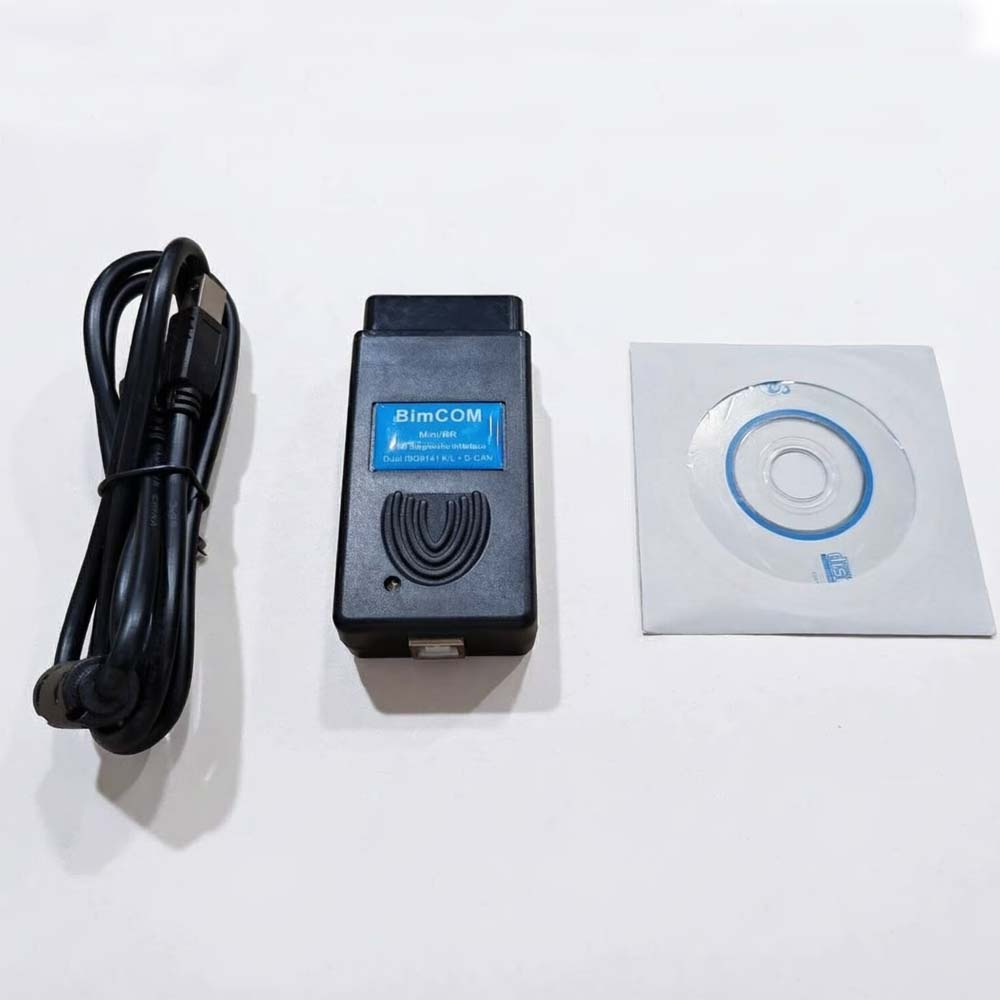

BimCOM OBD2 Scanner USB Automotive Diagnostic Tool for B-MW/Mini vehicles
BimCOM is diagnostic tool for B-MW/Mini vehicles. It supports all vehicles since 1996 using OBD2 or B-MW-20 pin diagnostic socket. B-MW Motorrad (motorcycles) support is in very early stages (please see B-MW Motorrad coverage). BimCOM is easy to use. It uses VAG-COM-like user interface, but easy to use for people familiar with dealer tools such as B-MW ISTA/D, ISTA/P, B-MW DIS/GT1. BimCOM comes with OBD2 to USB interface and is designed to work on Windows 2000/XP/Vista/7/8/10 or Linux or Mac OS/X (using Wine emulation). Hardware requirements are very low compared to dealer-tools.
Hardware

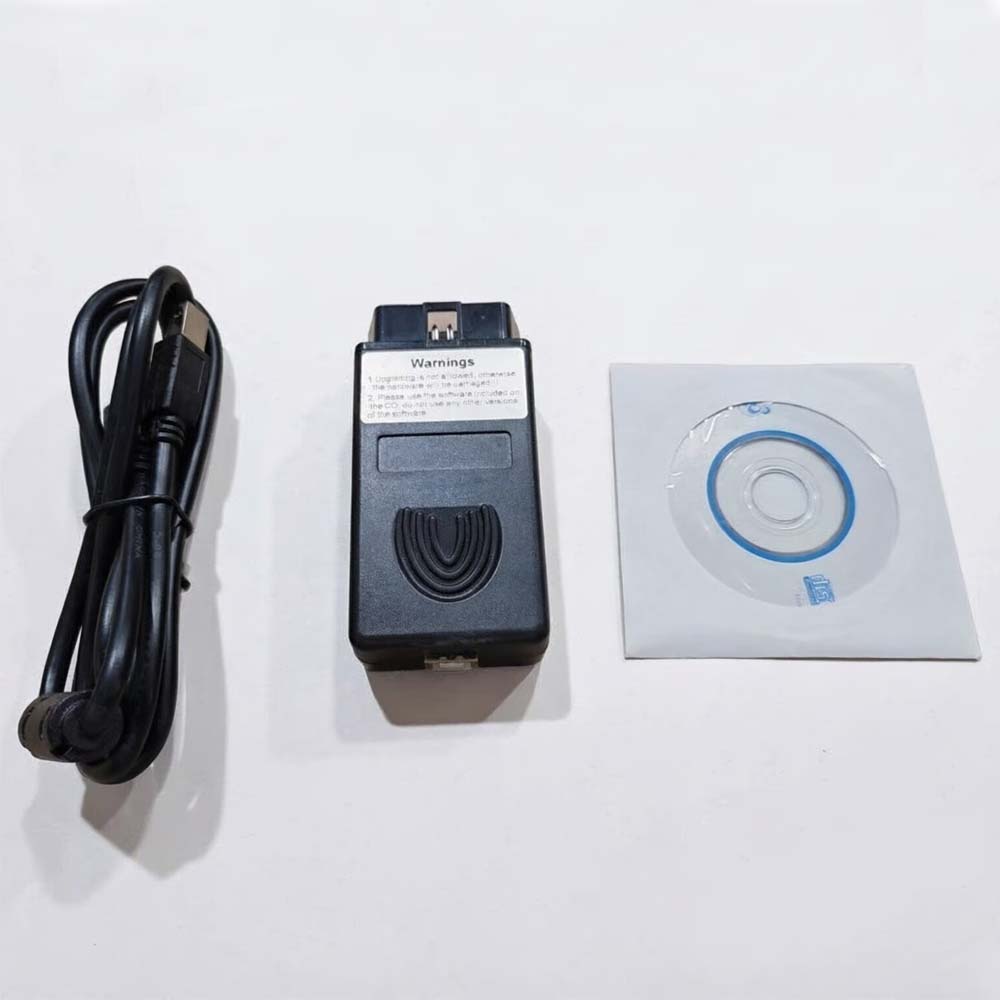

Our OBD2 to USB BimCOM interface contains 2 multiplexed ISO9141 K-Lines and L-Line, high-speed CAN-BUS and analog measurement circuits. Supported protocols include K1, KW-71, DS-1, DS-2, KWP2000* (KWP2000-star), KWP2000, B-MW-Fast, D-CAN/KWP and UDS ISO14229.

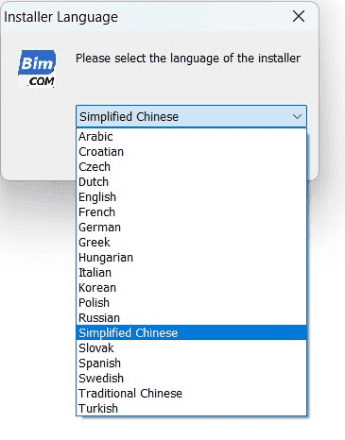

Installer Language:
Key features
1.Fully multiplexed all-in-one smart USB2.0 interface

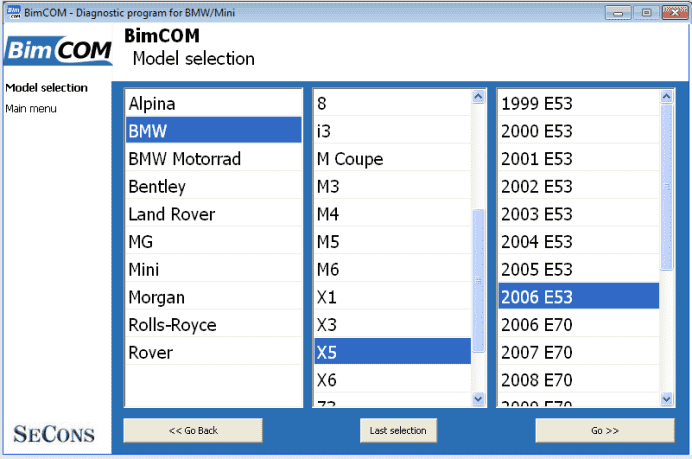

2.Automatic ECU recognition

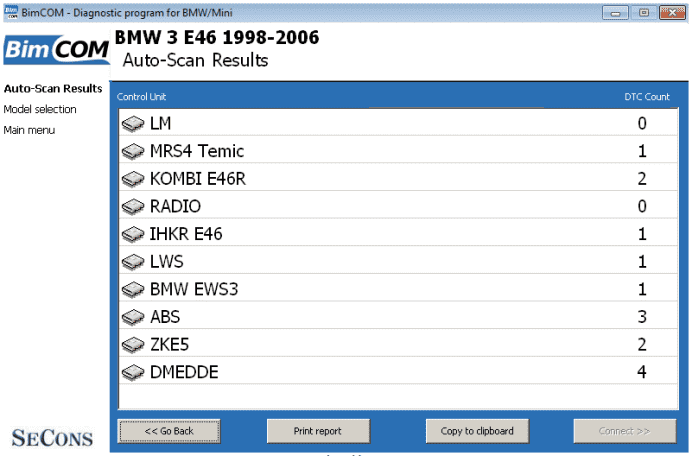

3.Automatic vehicle scan (screenshot)

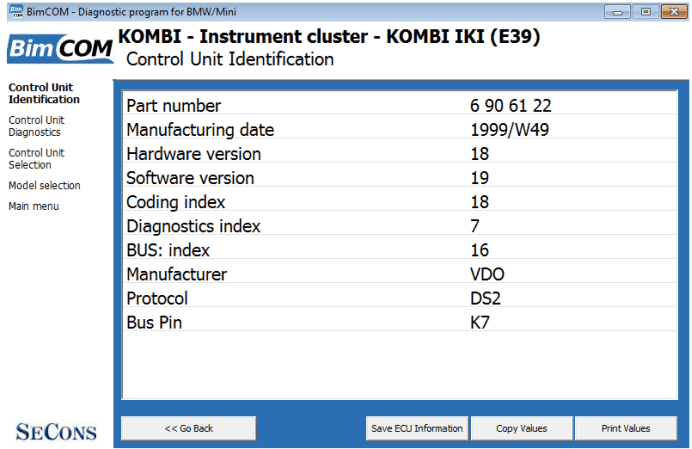

4.ECU Identification (screenshot)

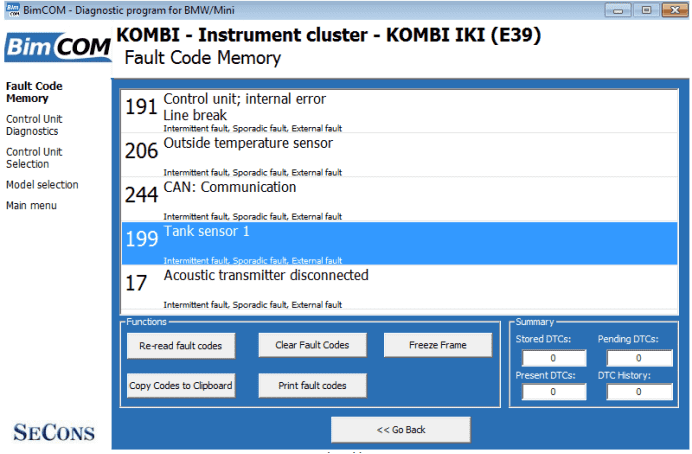

5.Fault code (DTC) reading (screenshot)
6.Fault code clearing

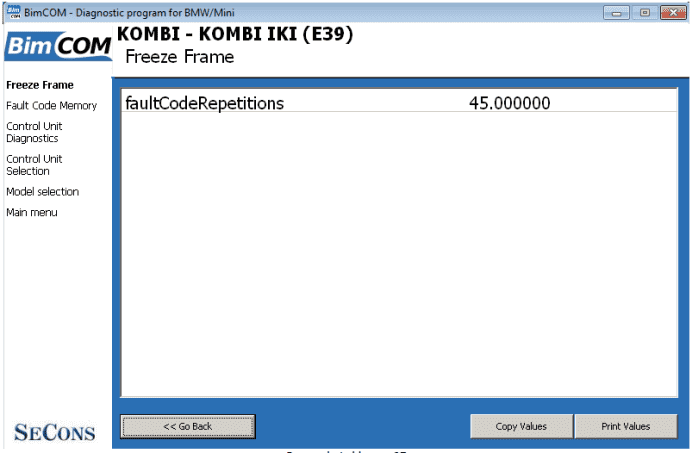

7.Freeze frame reading (screenshot)

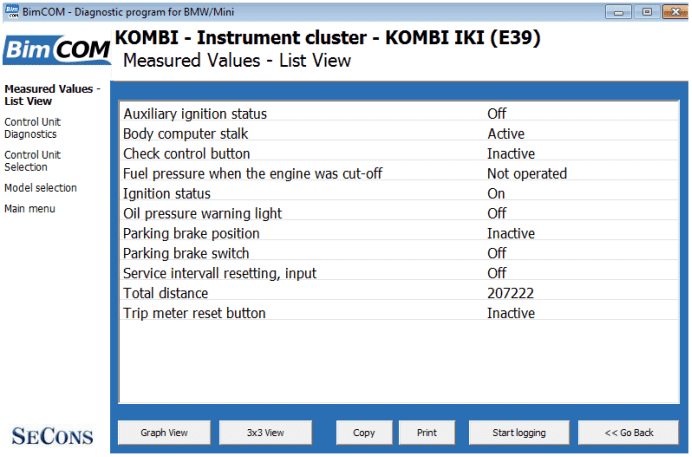

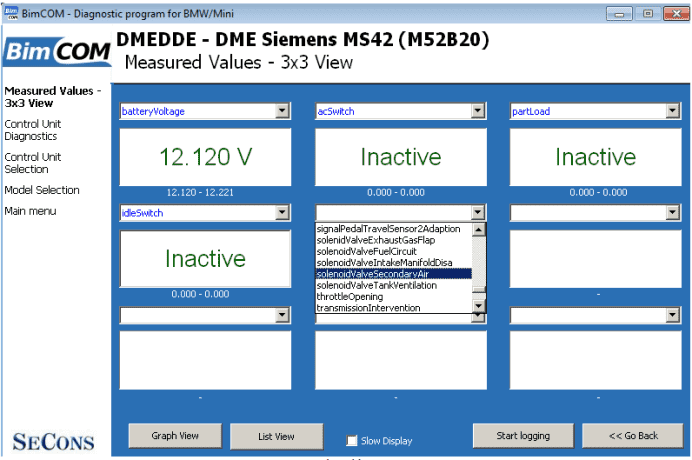

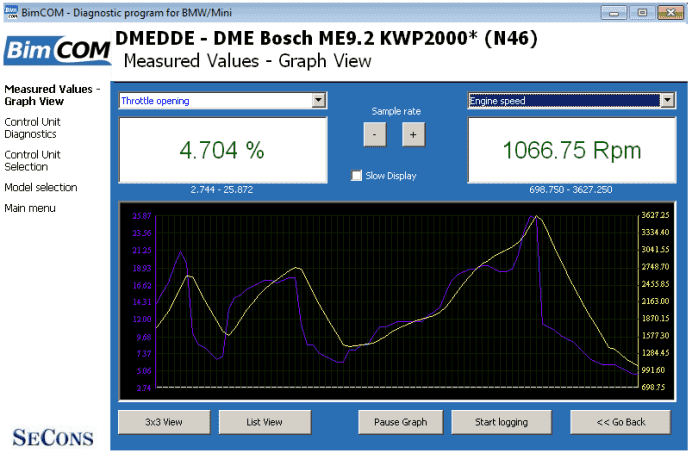

8.Measured vaules / live data (first, second and third screenshot)
9.Live data recording
10.Diagnostic protocol printing

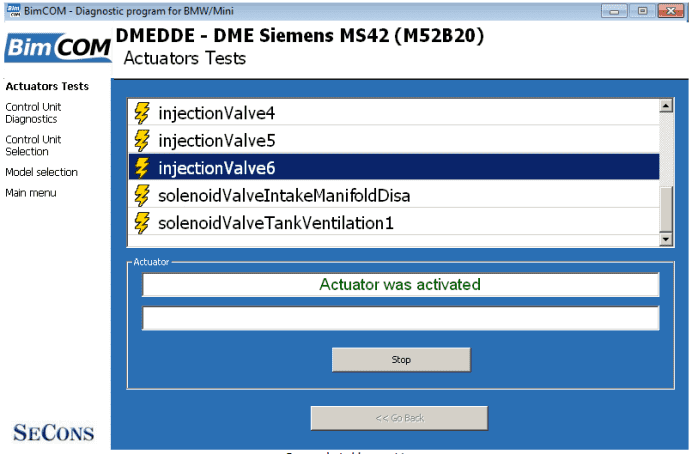

11.Actuator tests (screenshot)

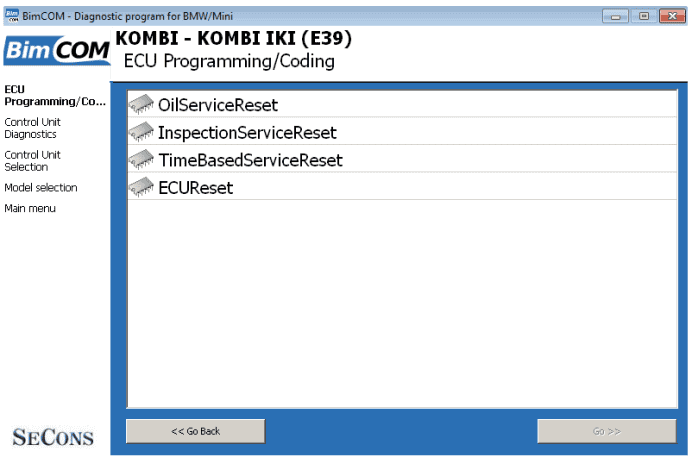

12.Control unit coding (screenshot)

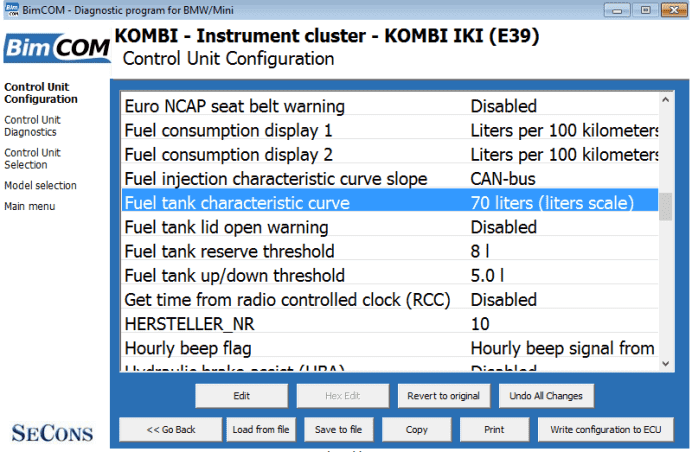

13.Configuration (screenshot, video)
