Cummins INLINE 7 Data Link Adapter Cummins Truck Diagnostic Tool with Cummins Insite 8.5 /8.7 Software
1.Hardware: Cummins INLINE 7 Data Link Adapter
2.Software: Cummins Insite 8.5/8.7
3.Update Method: update by CDs
states)/ Chinese(simplified)/ Danish/ Dutch/ Finnish/ French/ German/
Italian/ Japanese/ Korean/ Norwegian/ Portuguese/ Russian/ Spanish/
5.Suggest Operating System: Win7 32 Bit System , 8.7 version software only support win10 system
6.Connection Method: WIFI/ Bluetooth/ USB
Cummins engine diagnostic tool Cummins INLINE 7 Data Link Adapter has a
faster processor, more robust algorithms, larger memory buffers and
more sophisticated filtering than previous models while simultaneously
accessing multiple vehicle data channels. INLINE 7 supports USB, WiFi
and Bluetooth technologies in a single device. INLINE 7 communicates
with your PC and is designed for future capability with mobile products.
Cummins INLINE 7 DataLink Adapter is designed to function with a wide
array of Cummins, OEM and third-party service and information tools,
including the following:
Detroit Diesel Diagnostic Link
CAT Electronic Technician (On-Highway only)
Navistar® -ServiceMaxx Fleet Pro
VCAD Elite Mack/Volvo
V-Mac Service Tools
Allison DOC® For PC Service Tool
Allison DOC® for Fleets (1000/2000/3000/4000)
International DLB, Intune, and IPC v2.02
and many more!
Cummins INLINE 7 data link adapter communicates with your PC using a
Universal Serial Bus (USB) through a standard USB connector as well as
through WiFi or Bluetooth. INLINE 7 is fully compliant with the
Technology and Maintenance Council’s RP1210 standard and supports three
simultaneous CAN connections and offers baud rates of 250k, 500k and 1
Cummins INLINE 7 Supports several other protocols:
such as J1708, J1587, ISO 15765, ISO 9141 (K and L line)
Tips to activate & use Inline 7 Iniste 8.5 Software?
1. Inline7 runs the same driver as Inline6
Software activation is done via server. Need to confirm by server and
it may take some time, after success, the software is combined with your
3. Do not directly open the Inline 8.5 after installed, you need to go through the server software and use Inline 8.5.
After Inline 8.5 is authorized successfully, users can use 3 years for
free for 70 times, generally the user is supposed to get authorization
every month (that is within 3 years, after the times is used up, users
can get authorization by themselves). After 3 years, you need to pay
5.After activation, users are not allowed to change
laptop motherboard, RAM and CPU. If you change them, you have to submit
the Inline 7 serial number to the seller for activation.
Calibrations in the Inline 7 U disk can be used for 6 months only, after
6 months later you can search “Inline Calibrations” online and download
7.If you install Chinese version insite 8.5, then you have
to run “Cummins License Configuration tool” in Chinese; if you choose
the other language to install insite 8.5, then run the “Cummins License
Configuration tool” in English, because the dealer code is not the same.
Chinese dealer code: 010C
English dealer code: 086N
input Dealer code and serial number, please click on ” Payment
success”, then provide the dealer with the serial number for processing
in the server. When it is done, click on ” Payment success” again and
you will receive a message indicating success.
Cummins Inline 7 Data Link Adatper VS. Cummins Inline 6:
Cummins Inline 6 vs. Inline 7 in software and hardware
1.Comes with Insite 7.6 software (2013)
2. Pay to use Insite 8.2 8.3 8.5
3. Only works with Win7
4. When install insite, you need to change the computer time which is not easy to do.
1. Comes with Insite 8.5 software (2013)
2. The software is authorized for free, what the user to do is enter the serial number.
3. Works with WIN7 WIN10.
4. No need change the computer time, easy to install.
1. Inline 6 warranty: 1 year
2. The iron shell is heavier and not easy to take.
1. Inline 7 warranty: 3 years.
Comes with double-layer plastic which is anti-stress and stable, it can
protect the circuit board well. The outer layer is soft and comfortable
to the touch..
For a long-time use, the two rows of hollow pins are easily poor to contact, broke or bent.
The three rows of solid pins are durable, its warranty is 3 years.

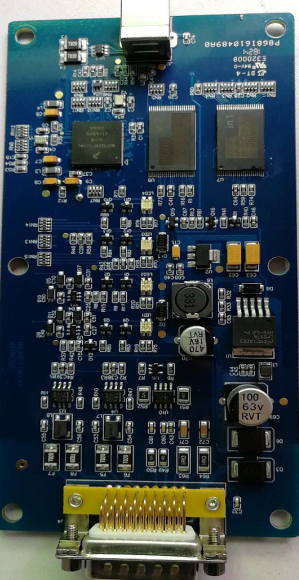

circuit board design is more tidy, the PCB line impedance is adjusted
and optimized, the product life is improved, and the stability of the
equipment is ensured. The maximum warranty is three years.
